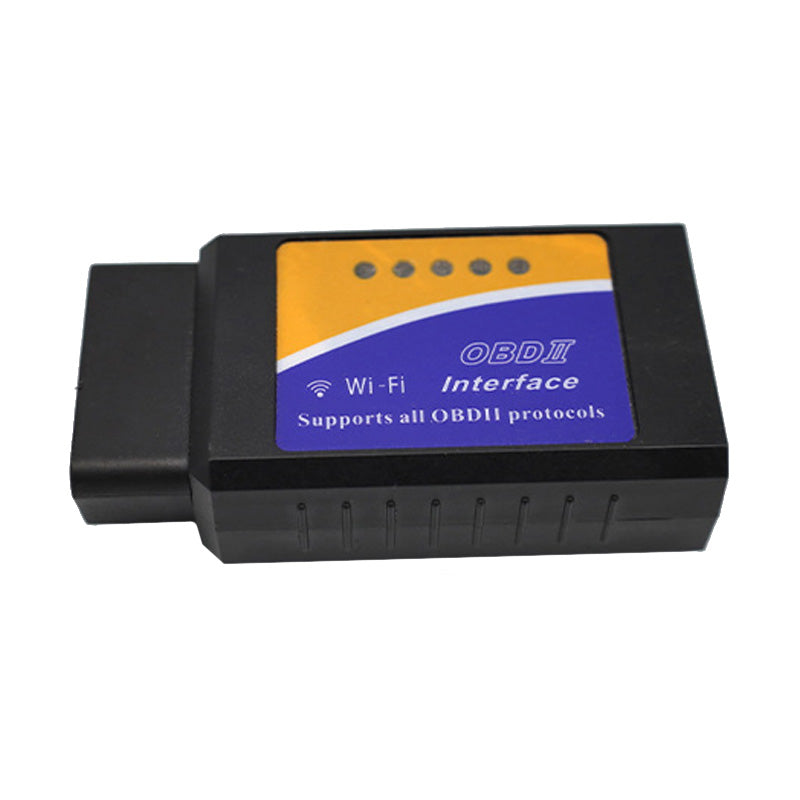

YMIOT B18 WiFi OBD2 Car Fault Scanner OBDII Vehicle Code Scan Diagnostic Tool

• It supports the reading of various sensor parameters of the vehicle, and is used for vehicle annual inspection, exhaust gas detection, and thorough testing of emission indicators
• Support vehicle DTC fault code reading and clearing for vehicle self-inspection and maintenance

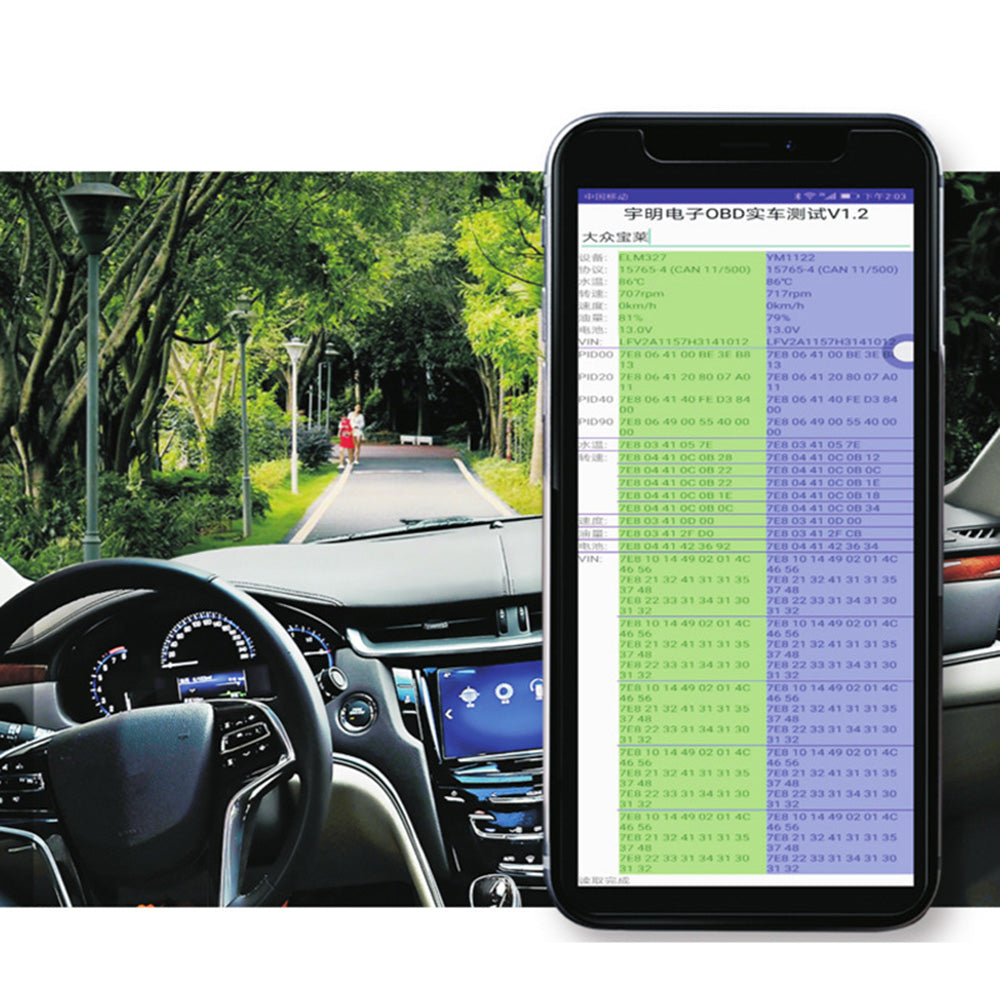

• It supports the reading of various states of the vehicle (such as engine speed, water temperature, speed, etc., up to nearly 100 states), and is used in conjunction with head-up displays, car networking-related systems, and smart garage systems
• It supports the reading of parameters such as VIN (also called vehicle identification number or frame number), CID, CVN, etc., and is widely used in various fields such as auto repair and auto parts
• Support long-term use as a vehicle status monitoring device

Supported protocols:

• SAE J1850 PWM (41.6 kbaud)
• SAE J1850 VPW (10.4 kbaud)
• ISO 9141-2 (5 baud init, 10.4 kbaud)
• ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
• ISO 14230-4 KWP (fast init, 10.4 kbaud)
• ISO 15765-4 CAN (11 bit ID, 500 kbaud)
• ISO 15765-4 CAN (29 bit ID, 500 kbaud)
• ISO 15765-4 CAN (11 bit ID, 250 kbaud)
• ISO 15765-4 CAN (29 bit ID, 250 kbaud)

Specification:

• Communication method: WIFI
• Software platform: Android, iOS, Windows
• Working voltage: 8V-17V, typical value 12V
• Working current: 75mA-105mA, typical value 85mA
• Working temperature:-40-85℃
• Product size: 47mmx25mmx88mm

Package included:

• 1 x Car Diagnostic Tool
