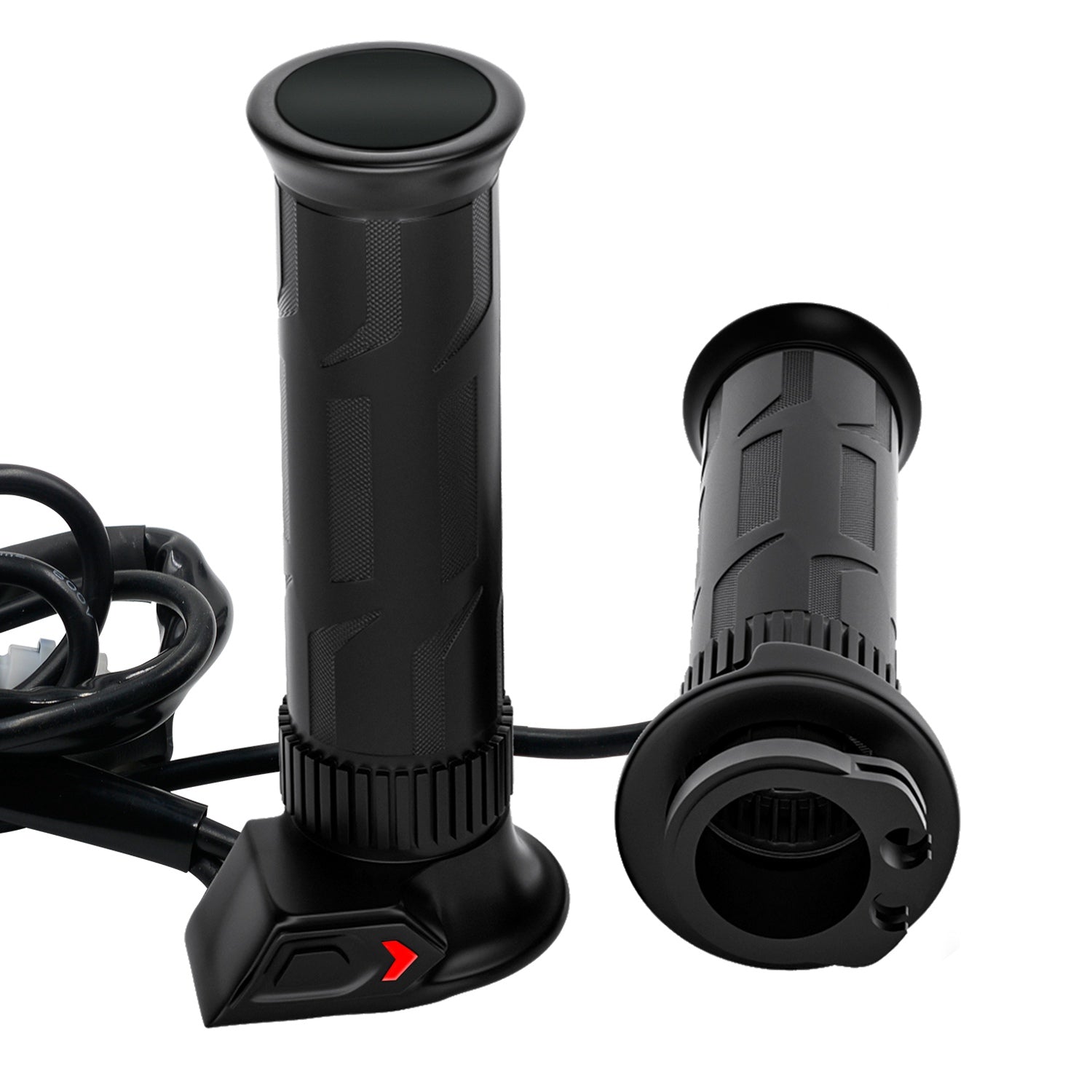

WUPP ZH-990B1 1Pair 5-Gear 12V Motorcycle Heating Handlebar Electric Heated Grips with Indicator Warmer Heating Grips for Winter

• Handlebar using PVC material (thermoplastic vulcanized rubber), integrated molding, with good anti-aging, heat-resistant, high toughness, high resilience, and other properties, durable and environmentally friendly use a wider range
• Product with five-position adjustment switch, temperature adjustment at will, keep hands warm in winter and frostbite say goodbye
• Product built-in intelligent chip, when the voltage is too high or too low, automatically cut off the power into the standby state, the use of more secure
• The product uses a high-strength waterproof design, not afraid of wind and rain, rain and snow weather can also be used normally
• The product handle tail plug can be removed, can be sealed, or through the mouth, more convenient to use at will
• The product can be installed in the working voltage 12.4V-15V motorcycle, scooters, beach bikes, three-wheeled motorcycle use, and a wider range of applications

Instructions for Use:

• The red wire is the positive pole, the black wire is the negative pole, please do not connect the wrong, otherwise, it is easy to cause damage to the product
• Power on the controller, the indicator light flashes 3 times, and enter the standby state Remarks: The color of the flashing indicator light is green indicates normal, the color blue indicates that the protection function does not work (controller failure), but also can be heated normally
• In the standby state, press the button on the handle set, if the power supply voltage is lower than the start voltage of the electric heating, the red light flashes a few times, and enter the standby state
• In the standby state, press the button on the handle set, if the power supply voltage is higher than the electric heating start voltage, the system will enter into rapid heating, so that the handle set is rapidly warmed up, and after a period of time, enter into stable heating
• In the working state, every time you press the button, the electric heating power will increase by 20%, a total of 5 gears, the indicator color is blue-cyan-green-purple-red in order
• In the working state, when the power supply voltage is lower than the electric heating start voltage, the corresponding gear indicator flashes, and if it is lower than this voltage within 7 seconds, the controller will cut off the electric heating output and enter the standby state. If the normal voltage is restored within 7 seconds, the indicator light will be on and the controller will enter normal operation
• In the working state, if the supply voltage is higher than the set maximum voltage value, the controller immediately cuts off the heating output and enters the standby state

Specifications:

• Product Model: ZH-990B1
• Product net weight: 307g
• Product size: 13.3*3.7CM
• Product material: PVC
• Working voltage: 12.4V-15V
• Output power: 20-40W
• Working temperature: -15°C-50°C
• Applicable tube diameter: 2.2CM in diameter
• Scope of application: suitable for DC12V scooters, motorcycles, beach bikes, and three-wheeled motorcycles installed and used
• Protection voltage: when the voltage is lower than (12.5 ± 0.2) volts, the heating handle off the output, and the controller into a dormant state
