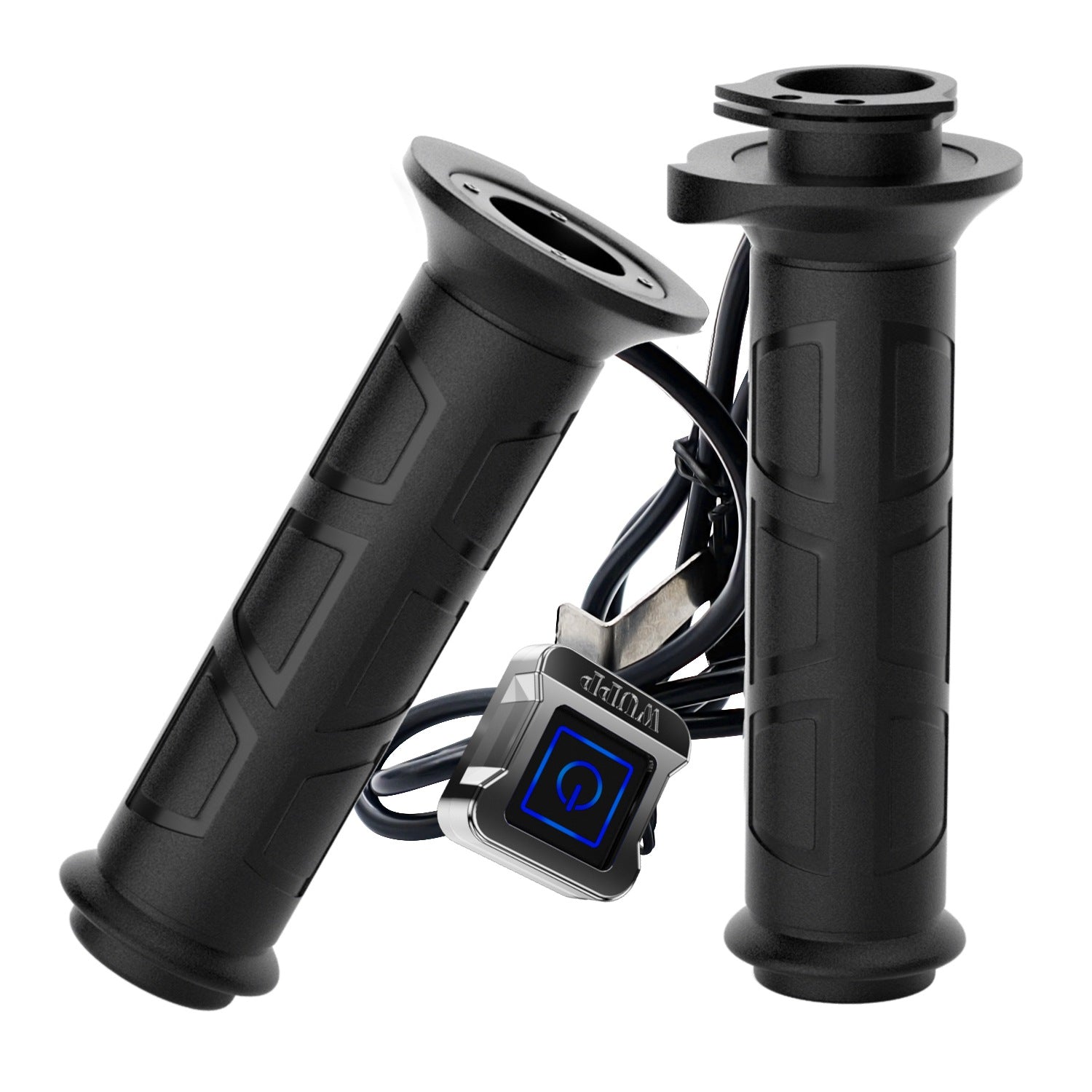

WUPP ZH-983C1 1Pair Smart 3-Gear 12V Motorcycle Heated Grips Universal Electric Heating Handlebar Modified Heating Grips Electric Scooter Warmer Handgrips

• The product uses a one-piece molding design to prevent rain, and dust into the internal corrosion parts, longer life, and more secure
• The product switch built-in intelligent temperature control chip, with three adjustable temperatures, you can adjust the temperature at will according to your needs, intelligent temperature control is more secure
• Product for 12V input voltage, 22MM handlebar universal inner diameter, suitable for most motorcycle use
• Product design with double throttle line snap design, wider installation range
• The product handlebar can be sealed with a pass-through design, which does not affect the installation of the handlebar plug and other decorative accessories outside the handlebar, making it more beautiful and convenient to use
• Product increased standby mode, switch to the standby state, and the electric handle will automatically thermostat to about 50 degrees, more convenient for your use
• Product line with a 5A fuse piece, and a waterproof cover, when the car has a problem can automatically cut off the power, effectively preventing dangerous accidents

Specifications:

• Product Model: ZH-983C1
• Product weight: 301g
• Material: Nitrile
• Handlebar size: left handlebar: 143*36MM; right handlebar: 127*36MM
• Suitable handlebar diameter: 22mm
• Input voltage: DC12V
• Product power: red light 35W, blue light 25W, green light 17W
• Handlebar temperature: low temperature 40 °C, medium temperature 50 °C, high temperature 60 °C
• Handle type: can be sealed through the mouth electric heating handle
• Switch type: aluminum alloy multi-speed adjustable temperature control switch
• Applicable models: Handlebar diameter of 22mm 12V motorcycle
• Switch fixing method: rearview mirror fixed, tape fixed

Operating Instructions:

• Power on: red light blue light green light each flashing once after extinguished
• Standby: red light breathing flashing state, the temperature reaches the highest automatic blue light into the standby state
• Working state: the indicator light is always on (high-grade: red light is always on, mid-range: blue light is always on, low-range: green light is always on)
• Long press the key for 3 seconds: enter standby mode or shutdown
• Click on the key: switch gears
• Switch use: long press 3 seconds to turn on, bright red breathing light into the standby state, after reaching a certain temperature will automatically become blue mid-range; lightly press a switch to blue light, the temperature is medium temperature; lightly press two changes to green, the temperature is the lowest; press three red, for three high temperature; long press 3 seconds to turn off

Installation Instructions:

• First of all, the original handlebar with tools to remove, and then the handlebar clean up
• Then the product left and right handlebar holes are moistened with soapy water, left and right handlebars are installed on top of the handlebar, the installation of the twisting range can not be too large
• The right handlebar installation power line should leave enough rotation margin, to facilitate the throttle gas pedal rotation
• Then the L bracket on the handlebar of this product is fixed in the position of the handlebar with screws, and then the line is fixed in the bracket to avoid the handlebar lining back and forth to reduce damage
• When connecting the power cord, the product's red line to the car's power positive, and the product black line to the car's power negative, confirm the positive and negative polarity before connecting, do not connect the reverse
• Because the product switch with two fixed ways (rearview mirror fixed, tape fixed), you can fix the aluminum switch with a small screw to the iron bracket, and then the iron bracket fixed to the rearview mirror base tighten; or directly with the film to the back of the aluminum switch, and then the tape to the appropriate location on the car can be fixed
• Handlebar installation balance iron, balance iron position adjusted to slightly separated from the handlebar, tighten the screws can not squeeze the handlebar, use the handlebar as sliding on the steel pipe, just remove the balance iron, from the handlebar tail point a few drops of 502 glue can be fixed

Product Wiring Method:

• Connect to the motorcycle electric door lock (behind the key) line, the red line to the electric door lock positive output line, the black line to any negative pole or lap iron
• Connected to the battery's positive and negative position, the red wire connects to the positive battery "+", the black wire connects to the negative battery "-"

Note:

• When installing the left handle, do not twist the handle too much, excessive twisting will cause the electric wire displacement
• With balance iron models, please adjust the balance iron installation position, do not squeeze the handle when tightening the screws, and balance the iron and handle slightly apart. If the installation position of the balance iron can not be adjusted, please add shims between the balance iron and handle to separate, excessive squeeze handle, will cause handle switch toggle difficulties, electric wire extrusion handle surface, and other abnormal damage
• The above installation steps are only suitable for general models, and special models, please install the specific installation steps according to their own models
• Wiring red to positive, black to negative if the reverse, the switch will burn, but the handle will be hot, so in the wiring, please determine the positive and negative ports before wiring, to prevent burning
