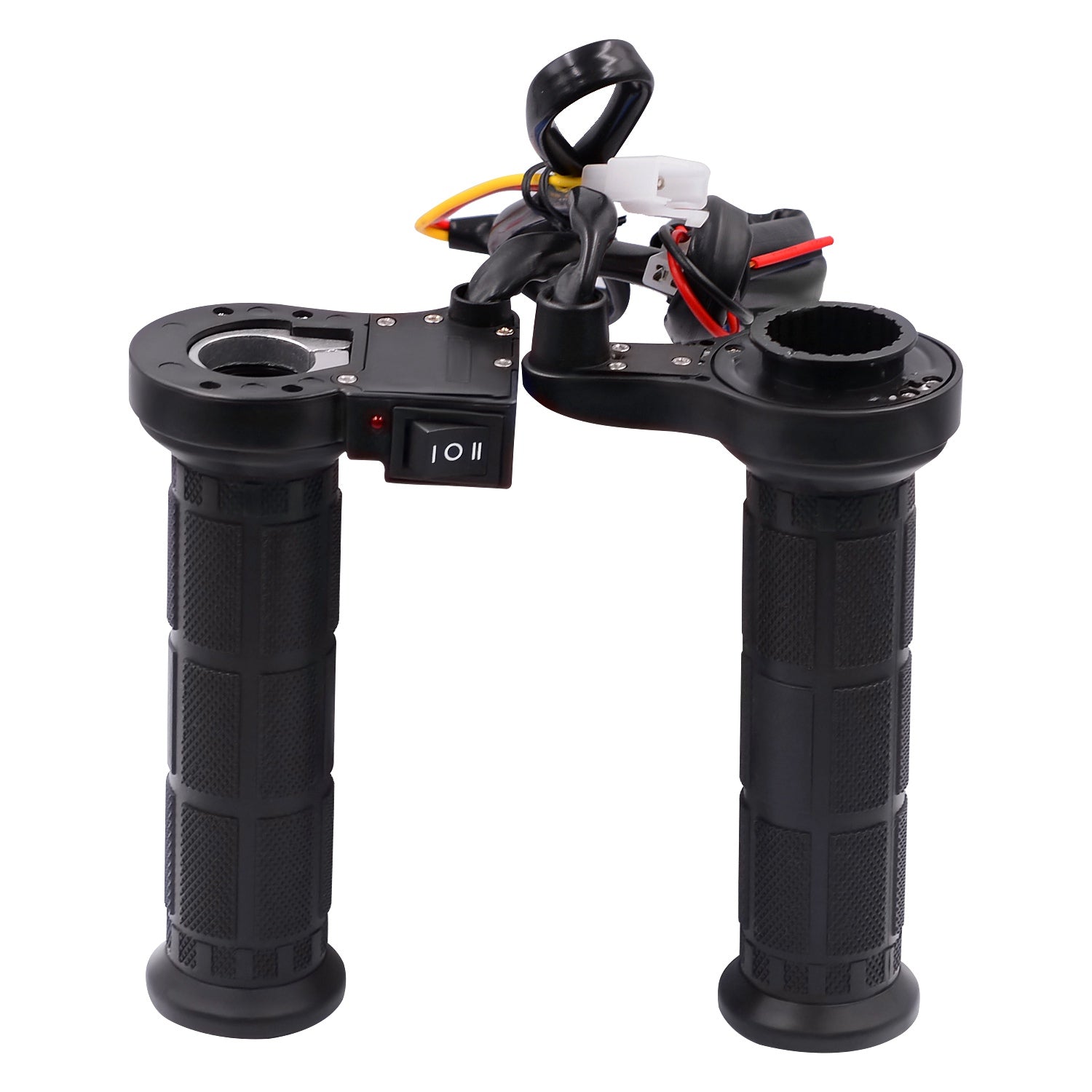

WUPP CS-203A1 1Pair Motorcycle Heated Grips for Winter Universal Electric Heating Handlebar 12V Modified Heating Grips Electric Scooter Handlebar

• Wires do not rotate with the fuel, have a longer life, more convenient; no sliding contacts, spring-powered technology, and handlebar fuel rotation is more flexible
• Handlebar integrated injection molding, waterproof, dust-proof longer life, and more secure; a handlebar can be applied to 22mm and 25 directional models
• Split single and double 360-degree throttle design; electric handgrip model universal design, applicable models more widely
• Installation is super simple: after the installation of the throttle, the right-hand handle lead elbow aligned with the throttle cable column inserted on OK. with a tie will be the elbow and cable column gently bundled together. Improve the old accessories too many installations is too complicated
• The first anti-disengagement ring: the use of an anti-disengagement ring to prevent the handle from out, because it will not be eccentric rotation more flexible. Improve the old model with an iron ring fixed handle, screws loose easy to take off, screws tightened caused by eccentric will rotate inflexibly
• Aluminum ring hoop fastening: the left-hand holds the aluminum ring hoop fixed more firmly. Exercise more securely. Improve the old model using an iron ring fixed easily to sway
• Wires do not turn with the gas: the right hand between the electric wire and the power supply wire using the spring power supply, joint solder all tin welding to ensure waterproof anti-corrosion
• Ultra-thin turntable: the left and right-hand turns the turntable thinner, more beautiful, and more convenient to press the horn

Installation Method:

• Fuel filler into the throttling seat: fuel filler into the throttling seat to hang the throttle cable and then close the lid. Then the right hand inserted into the fuel filler rotation is a flexible, inflexible grinding fuel filler.
• Right-hand handles inserted into the office of the mountain mouth oiler: coarse positioning: the right handle of the anti-rotation elbow aligned with the throttle pull line column or other bit basins of the head, insert the right handle so that the elbow against the pull line column, mark the ring into the bit cover. Precise positioning: try to insert the gear slot at the mark several times, so that the elbow does not turn and the corner is moderate and does not affect the fueling of the car. The right-hand design of the idle angle does not exceed 120 degrees, generally adjusted to 75-90 degrees can meet the car refueling. The stepping angle of the gear slot is 15 degrees.
• The anti-release ring is installed into the throttling seat. Insert the right handle into the fuel filler to the end. Must be installed into the throttling seat! The anti-release ring is to prevent the right handle from coming out of the fuel filler seat causing a safety accident. Individual scooter shells will be inserted between the right handle and the fuel filler, at this time the anti-release ring can not be installed into the throttling seat, must be in the fuel filler, and the connection of the anti-release ring drop 502 glue to prevent the right handle out. After the drop of glue immediately inverted the right handle to prevent the flow into the handle shadow zoo rotation.
• Tilt installation to extend the life: the left switch tilt installation so that rainwater outflow can extend the life of the switch. Poor contact with the switch can drop gasoline repeatedly pressed. Available blade to remove the button to scrape the contact corrosion with gasoline cleaning.
• DC power supply model connection: DC models feature headlights powered by the battery. The handle black line is positive, connected to the 12-volt positive line out of the faucet lock. The line must be able to turn off the power when screwing the faucet lock. If you can not turn off the power, the handlebar switch will forget to turn off when the battery power will be exhausted. The green wire of the handle is negatively connected to the negative pole of the vehicle hitch.

Specifications:

• Product Model: CS-203A1
• Product weight: 248g
• Product material: nylon, soft rubber TPU environmental protection material
• Handle length: left-hand handle: 14cm, right-hand handle length: 14.7cm
• Handle diameter: 2.2cm
• Input voltage: 12V
• Product power: 25W pair of power
• Handle temperature: 50 ℃ -70 ℃ adjustable
• Switch type: three-position adjustable switch
• Applicable models: Applicable handlebar diameter of 2.2cm motorcycle handlebar
