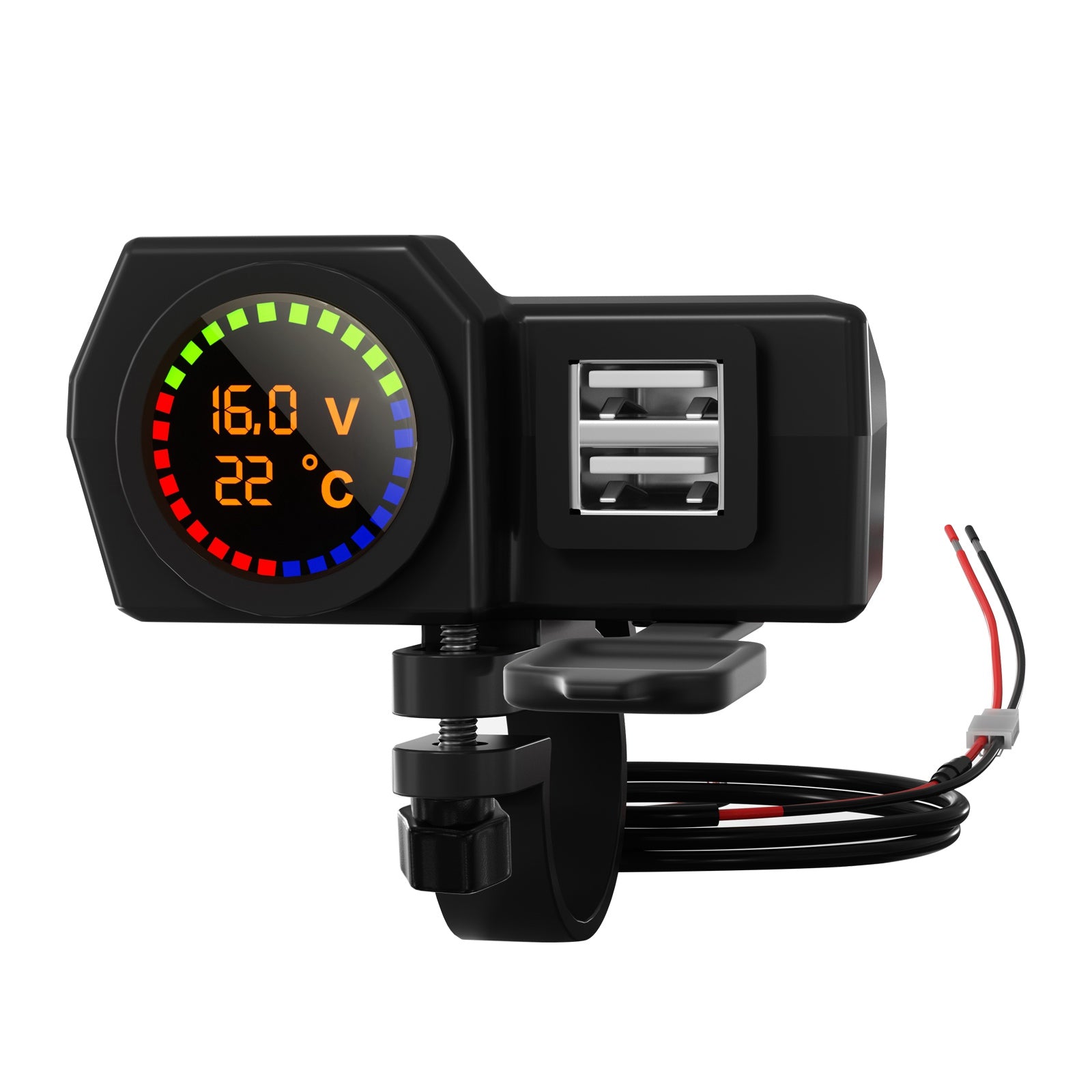

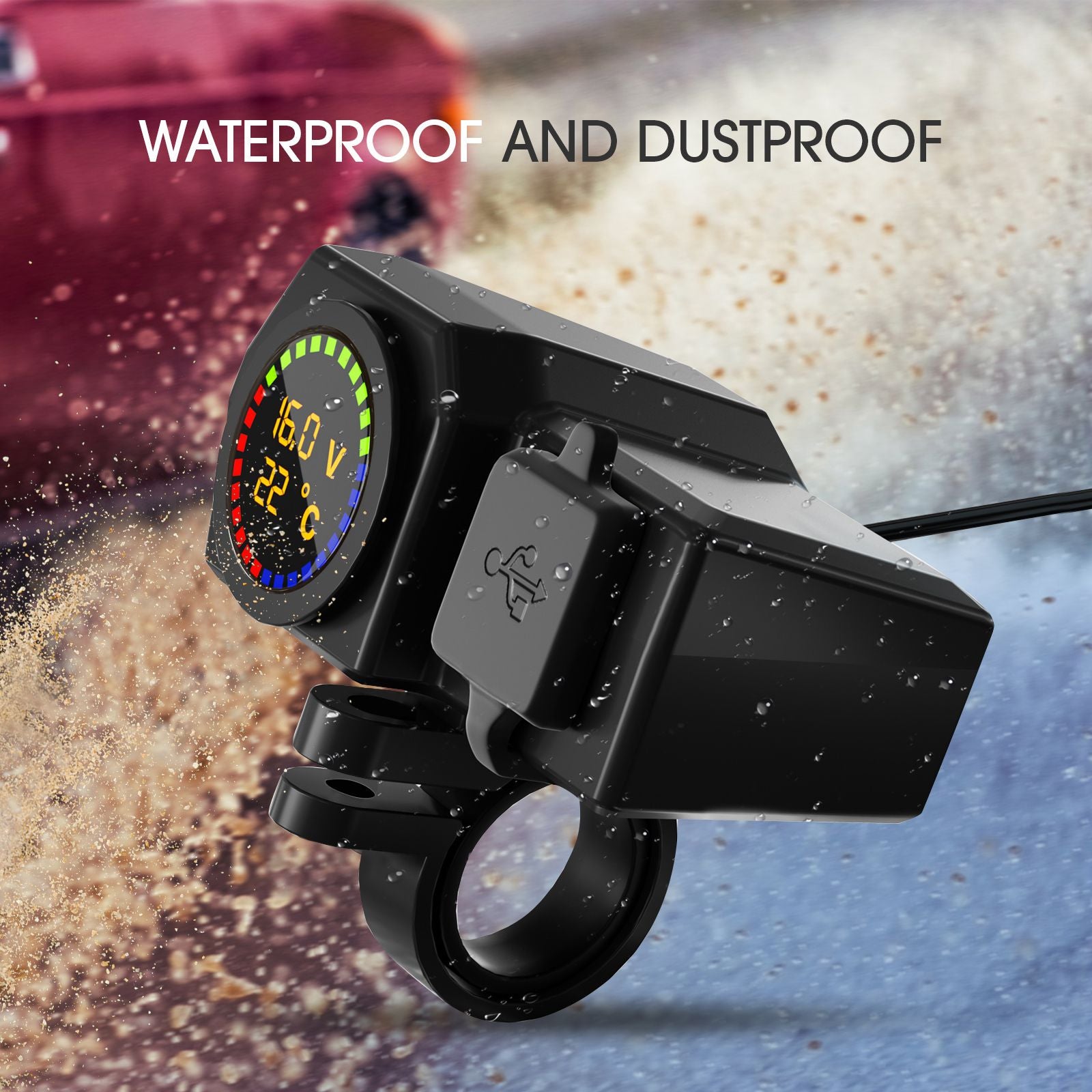

WUPP CS-1747A1 Motorcycle Modify 3.4A Dual USB Charger Voltage Temperature Digital Display Waterproof Phone Charging Adapter

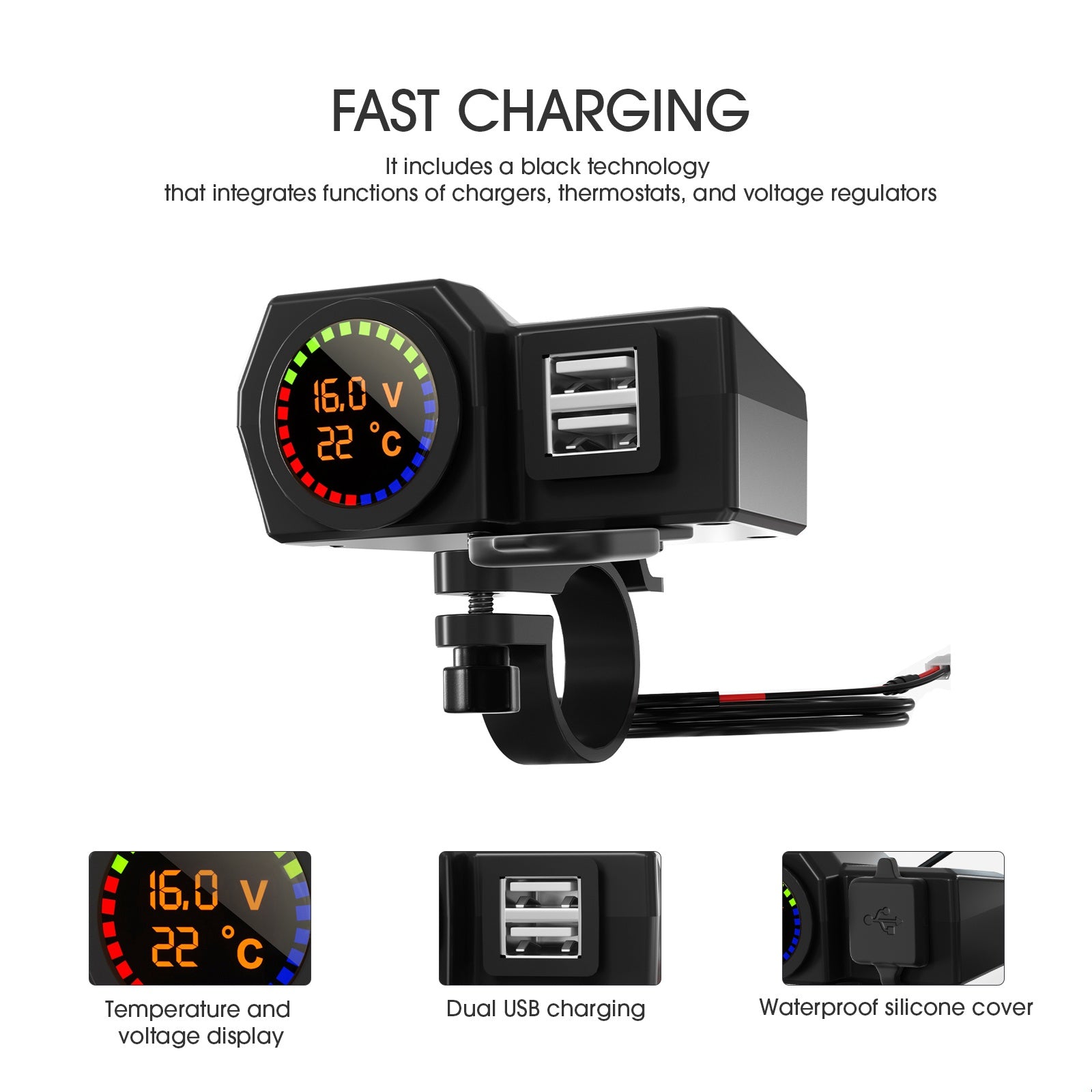

• The product supports 5V/3.4A charging, and can be used to power mobile phones, tablets, GPS, etc., with a wide range of applications

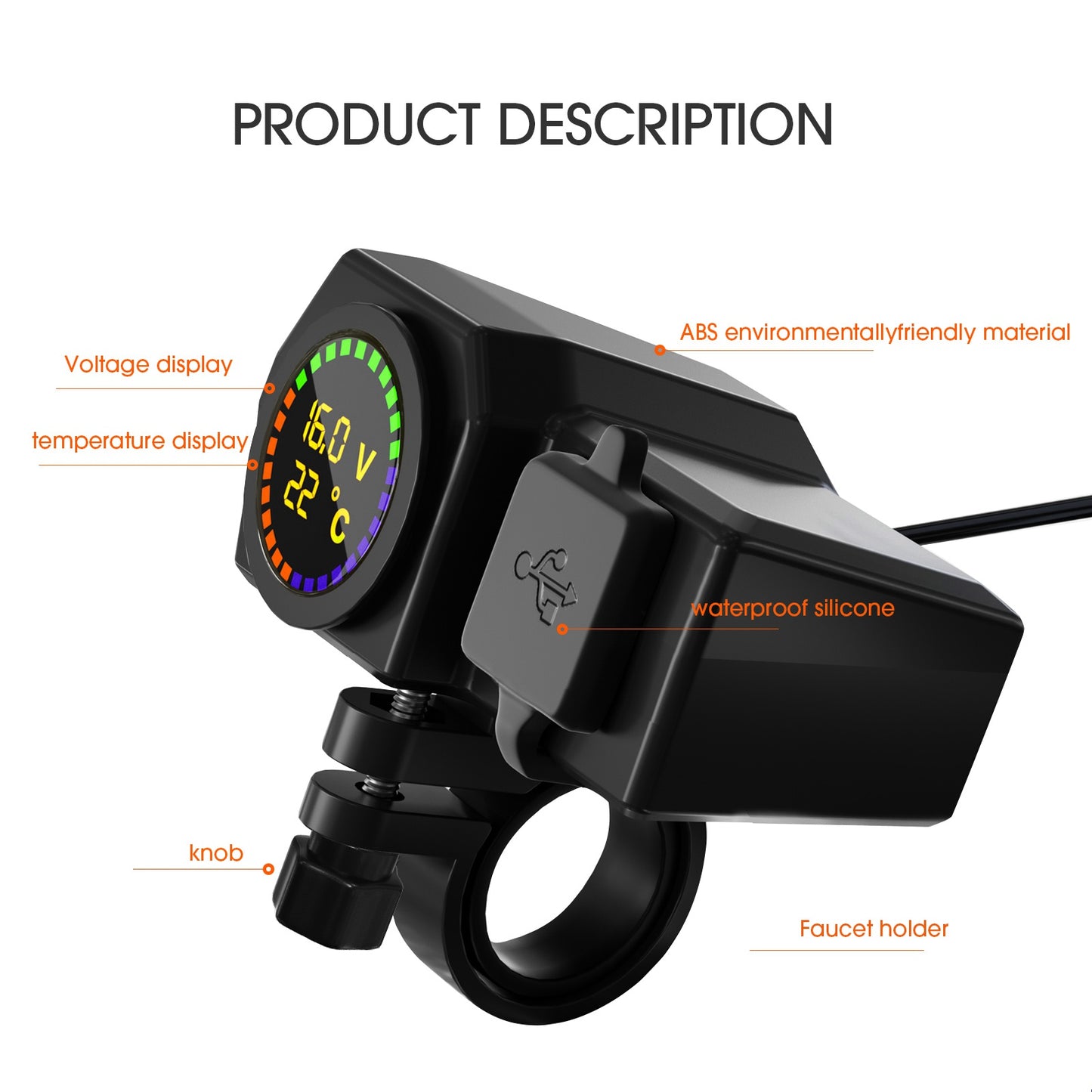

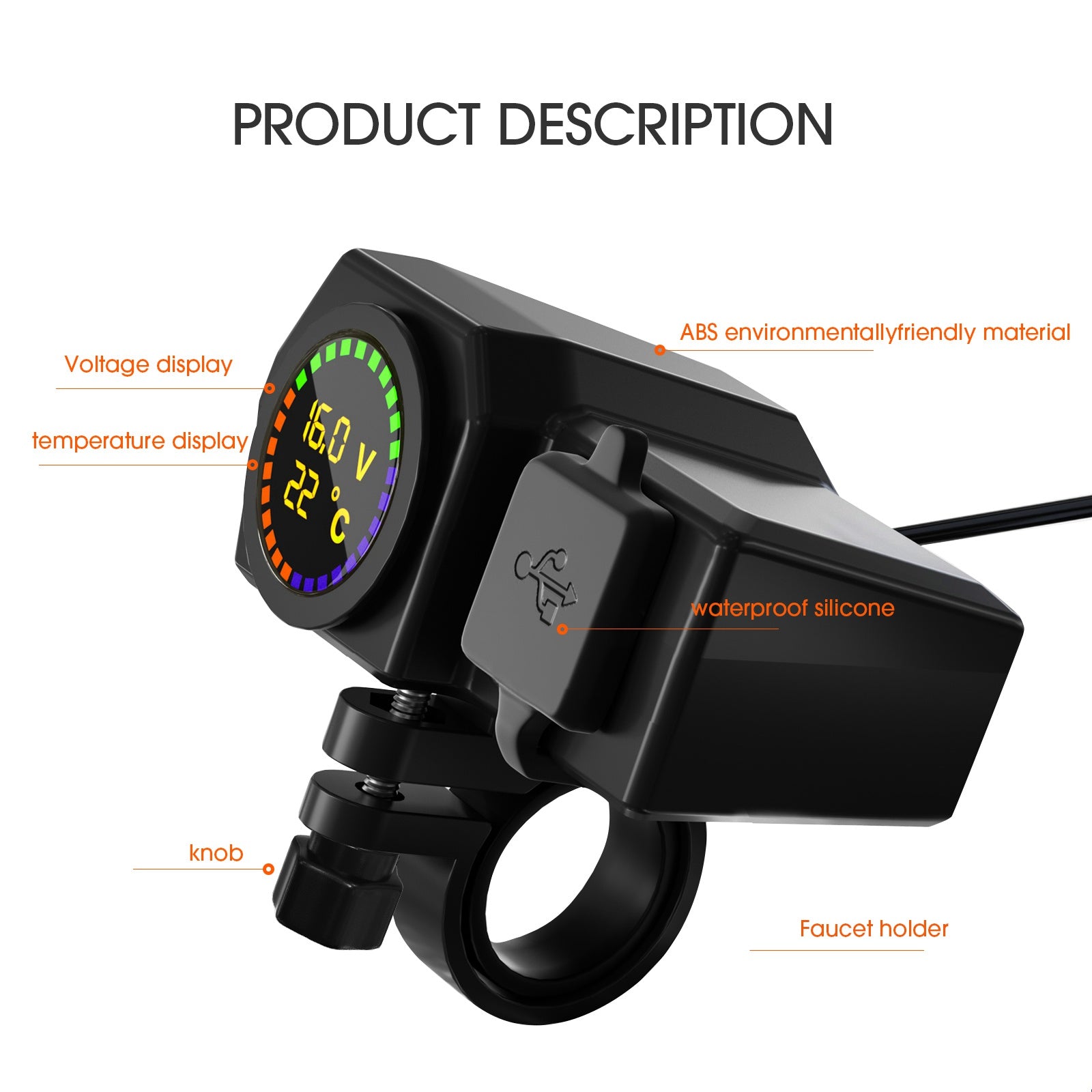

• The product is equipped with a color-screen voltmeter, which can detect the use of the car battery at any time and prevent potential safety hazards caused by poor battery, and also display the temperature

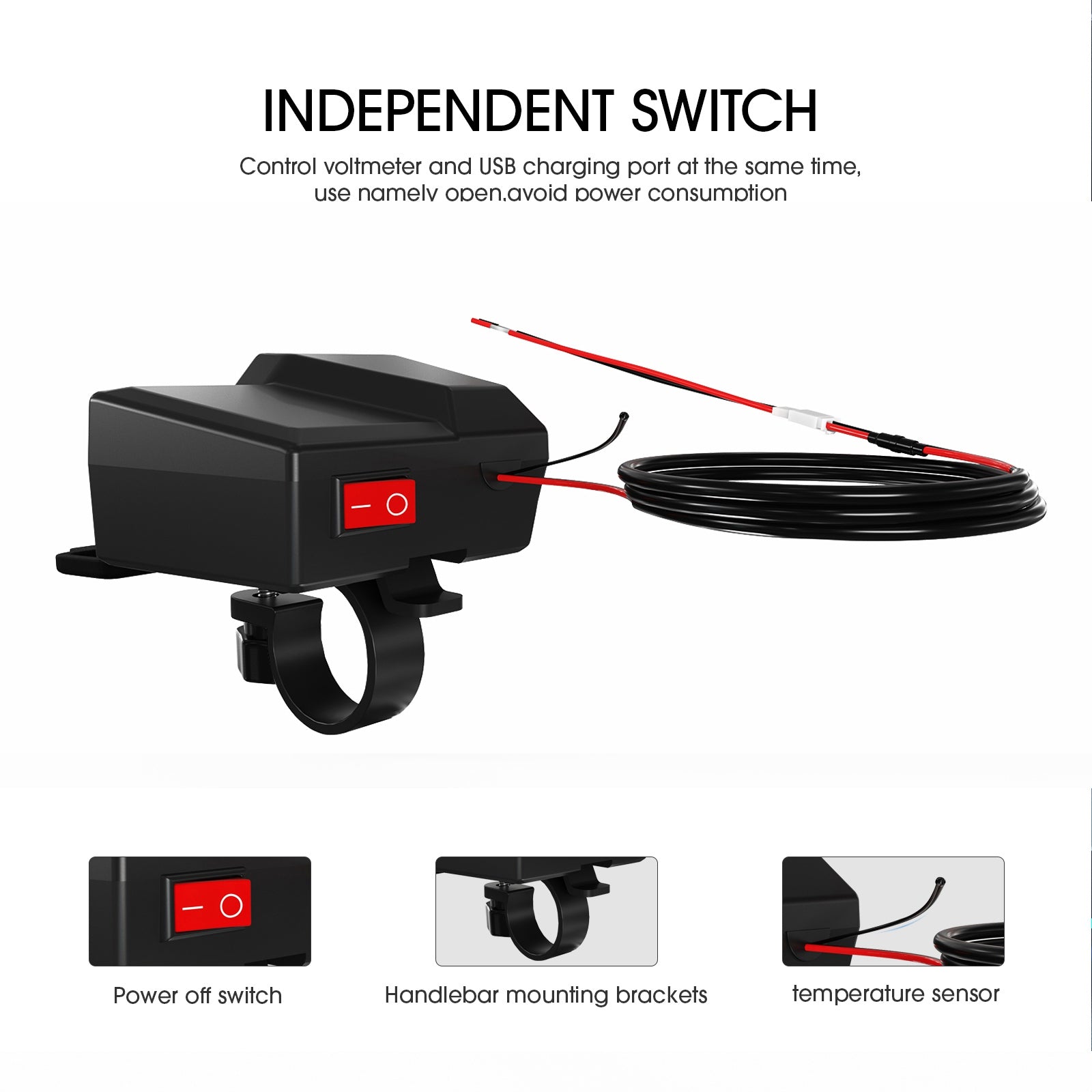

• The product has a power switch, which is more convenient to use
• The product uses a 70cm power cord, which fully meets the installation requirements and can be directly installed on the power supply to reduce the difficulty of installation
• And the wire has a white connector, even if it is connected to the battery, it can be plugged and unplugged at will, which is convenient for power off

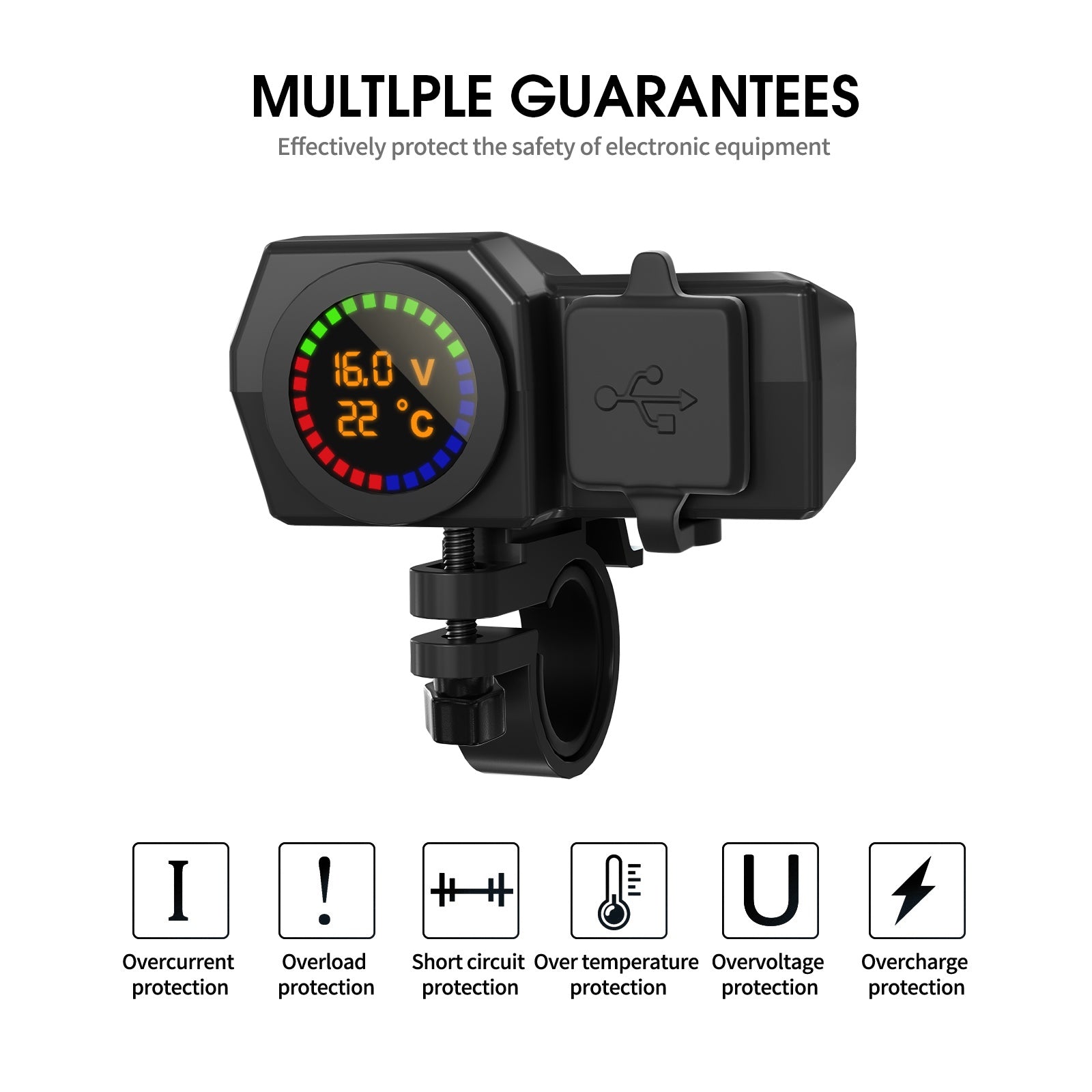

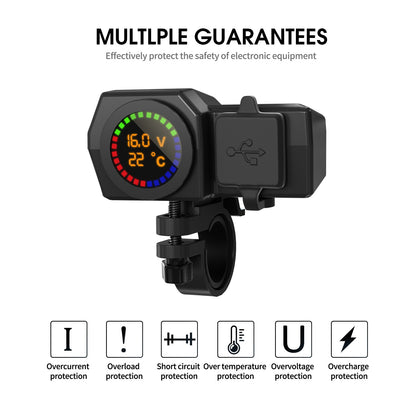

• The product has multiple protection functions, input overvoltage, under-voltage protection; output overcurrent, overvoltage, under-voltage, short circuit protection; reverse connection protection; chip internal high-temperature protection

Wiring Method:

• The red wire is connected to the positive pole of the battery +, and the black wire is connected to the negative pole of the battery -

Specification:

• Product Model: CS-1747A1
• Product material: ABS flame retardant material
• Product net weight: 99.7g
• Product cable length: 70cm

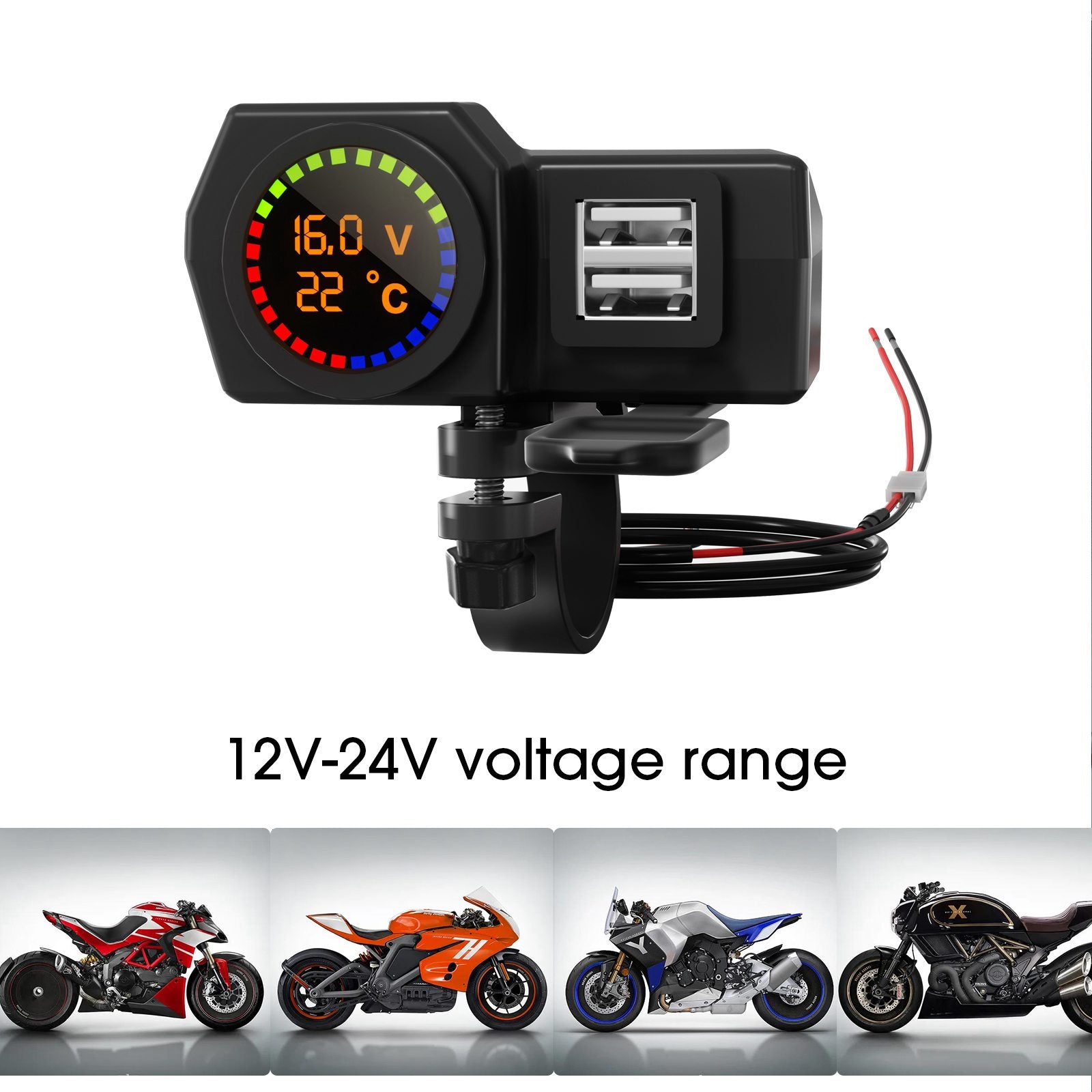

• Input voltage: DC12V-24V
• Product interface: dual USB port
• Charging port output: 5V/3.4A
• Voltmeter monitoring range: 6-30V
• Voltmeter color: orange + red, green and blue light circle
• Color screen voltage range: 10V-12.7V appears red, 12.8V-14.5V appears green, 14.6V-16V appears blue

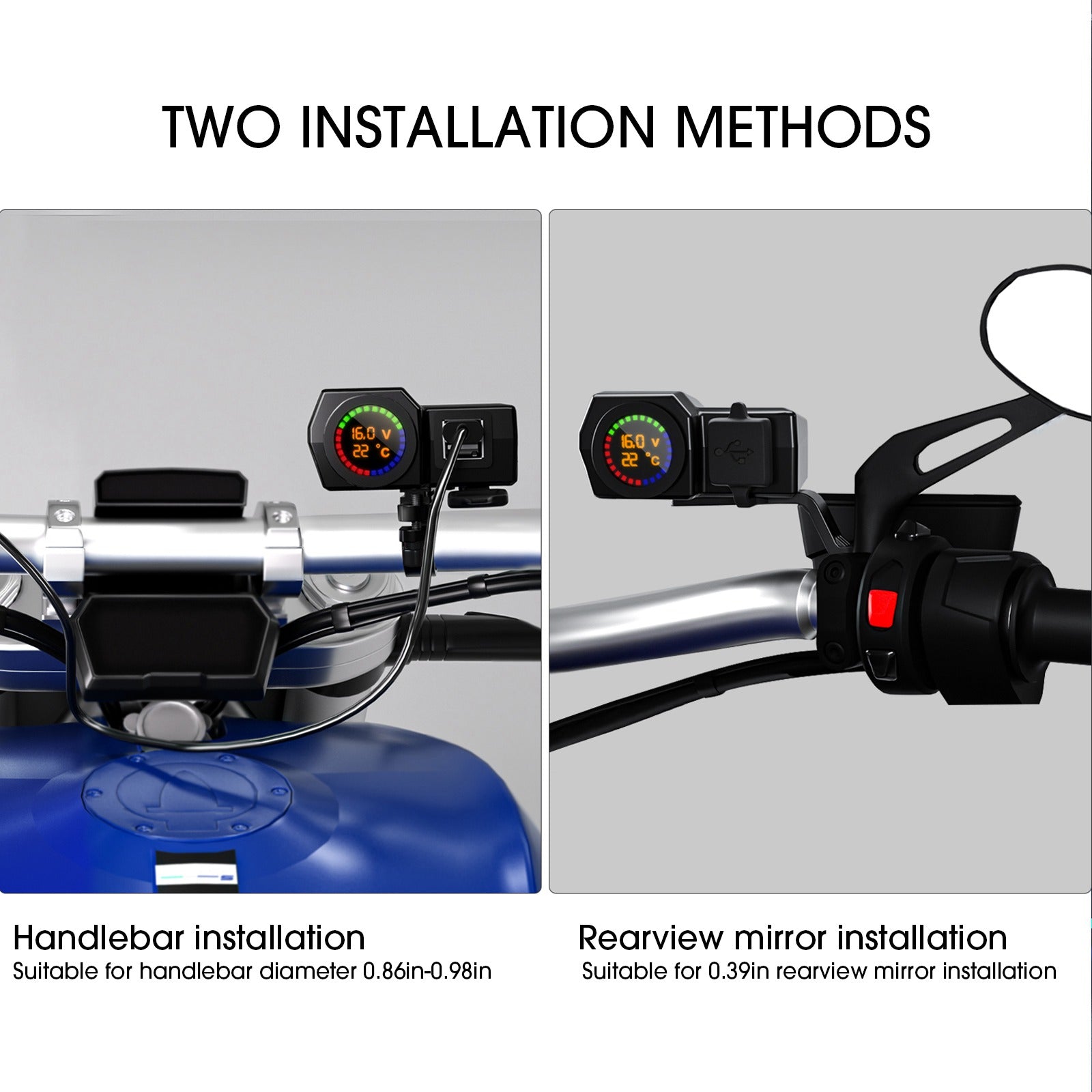

• Installation method: handlebar installation, rearview mirror installation

Package included:

• 1 x Motorcycle Charger

• 1 x Handlebar Mounting Bracket

• 1 x Rearview Mirror Mounting Bracket

• 1 x Anti-skid Gasket

• 1 x Long Screw

• 2 x Small Screws

• 1 x Fixing Nut

• 1 x Fixing Gasket
