SKU:672300036A

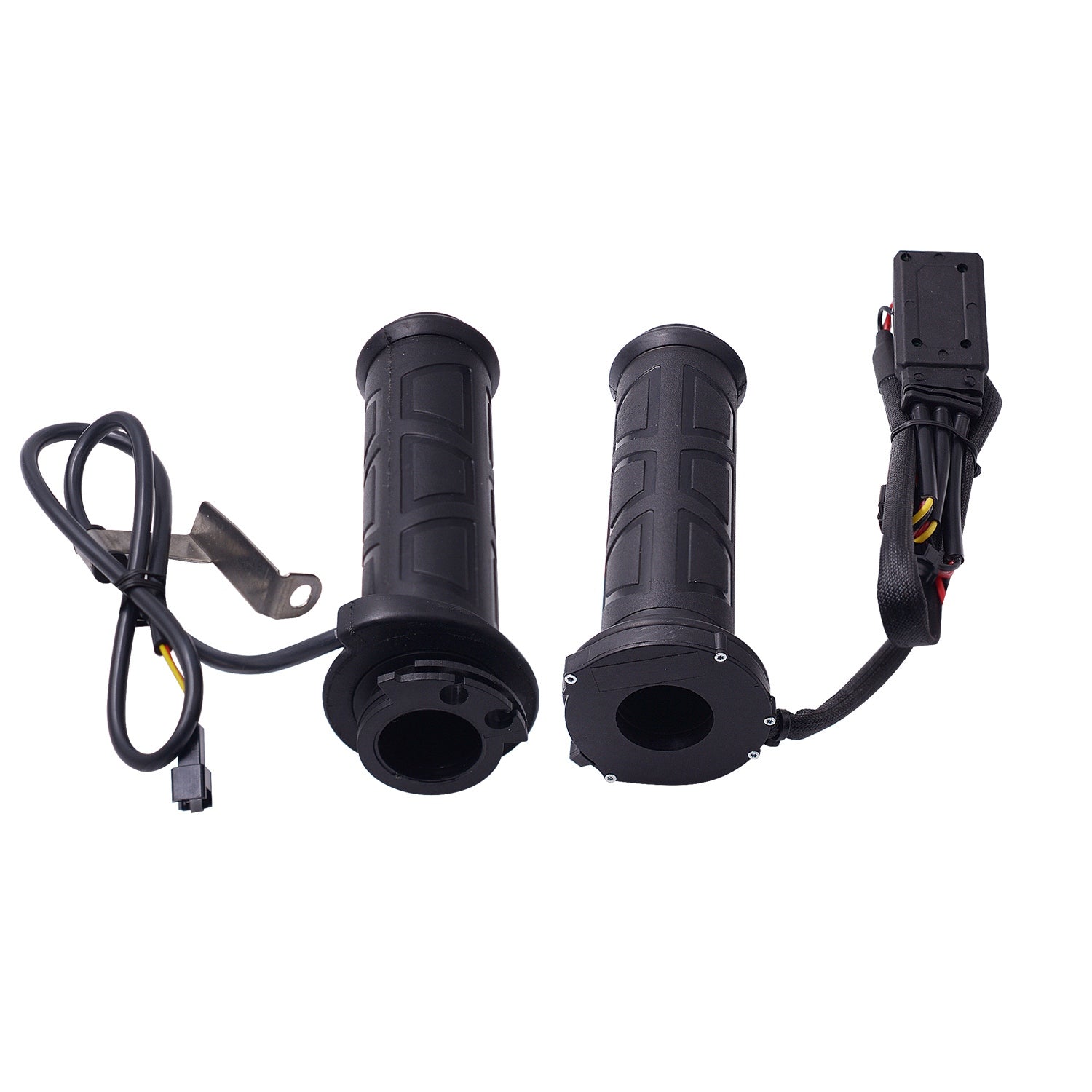

WUPP CS-095B1 1Pair Motorcycle Heating Handlebar for Winter Electric Heated Grips 12V Warmer Heating Grips

Rs. 2,575.00

Save Rs. -2,575.00 Sold out

Tax included.

Product variants

Quantity

12V voltage, 22MM handlebar inner diameter, suitable for most motorcycle use
The product is set up with high and low gear switches, you can adjust the handlebar temperature at will (50°C- 70°C adjustable)
Dual throttle cable clasp, installation range is broader
Can be sealed through the mouth design, does not affect the handlebar outside the installation of the handlebar plug, to handlebar light and other decorative accessories, more beautiful and more convenient

Installation Instructions:

Remove the original handlebar
The inner hole of the left handlebar is wetted with soapy water, and the twisting amplitude should not be too large during installation
When installing the balance iron on the left handle, adjust the position of the balance iron to slightly separate from the handle, and do not squeeze the handle when tightening the screws
If the left handle slides on the steel pipe during use, remove the balancing iron
Power cord, red wire to positive, black wire to negative, the reverse temperature can not be adjusted
The left handle should be installed when the power cord should be left enough to rotate the remaining line

Specifications:

Product Model: CS-095B1
Product net weight: 248.8g
Product material: Nitrile rubber
Input voltage: DC12V
Product power: 12-24w adjustable
Product inner diameter: 2.2CM
Product temperature: the low temperature for 50 ° C, high temperature for 70 ° C
Handle type: through the mouth electric heating handle
Switch type: multi-speed adjustable switch
Applicable models: Handlebar diameter of 22MM 12V motorcycle

Note:

When installing the left handlebar, do not twist the handlebar too much, too much twisting will cause the electric heating wire displacement
With balance iron models, please adjust the installation position of the balance iron, do not squeeze the handlebar when tightening the screws, the balance iron, and the handlebar are slightly apart. If the installation position of the balance iron can not be adjusted, please add shims between the balance iron and handle to separate, excessive squeeze handle, will cause handle switch toggle difficulties, electric wire extrusion handle surface, and other abnormal damage

12V voltage, 22MM handlebar inner diameter, suitable for most motorcycle use
The product is set up with high and low gear switches, you can adjust the handlebar temperature at will (50°C- 70°C adjustable)
Dual throttle cable clasp, installation range is broader
Can be sealed through the mouth design, does not affect the handlebar outside the installation of the handlebar plug, to handlebar light and other decorative accessories, more beautiful and more convenient

Installation Instructions:

Remove the original handlebar
The inner hole of the left handlebar is wetted with soapy water, and the twisting amplitude should not be too large during installation
When installing the balance iron on the left handle, adjust the position of the balance iron to slightly separate from the handle, and do not squeeze the handle when tightening the screws
If the left handle slides on the steel pipe during use, remove the balancing iron
Power cord, red wire to positive, black wire to negative, the reverse temperature can not be adjusted
The left handle should be installed when the power cord should be left enough to rotate the remaining line

Specifications:

Product Model: CS-095B1
Product net weight: 248.8g
Product material: Nitrile rubber
Input voltage: DC12V
Product power: 12-24w adjustable
Product inner diameter: 2.2CM
Product temperature: the low temperature for 50 ° C, high temperature for 70 ° C
Handle type: through the mouth electric heating handle
Switch type: multi-speed adjustable switch
Applicable models: Handlebar diameter of 22MM 12V motorcycle

Note:

When installing the left handlebar, do not twist the handlebar too much, too much twisting will cause the electric heating wire displacement
With balance iron models, please adjust the installation position of the balance iron, do not squeeze the handlebar when tightening the screws, the balance iron, and the handlebar are slightly apart. If the installation position of the balance iron can not be adjusted, please add shims between the balance iron and handle to separate, excessive squeeze handle, will cause handle switch toggle difficulties, electric wire extrusion handle surface, and other abnormal damage
