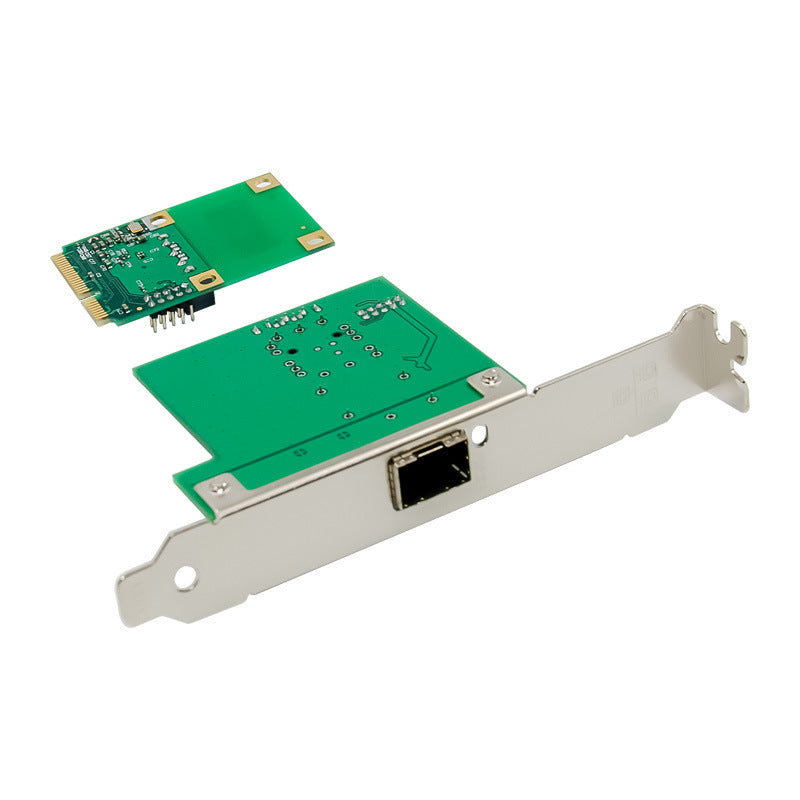

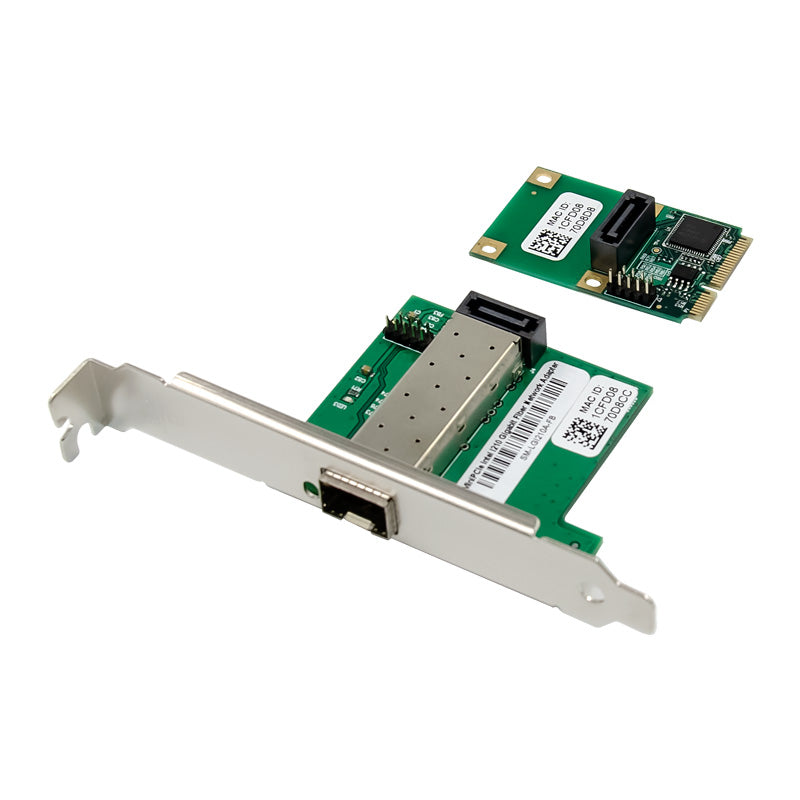

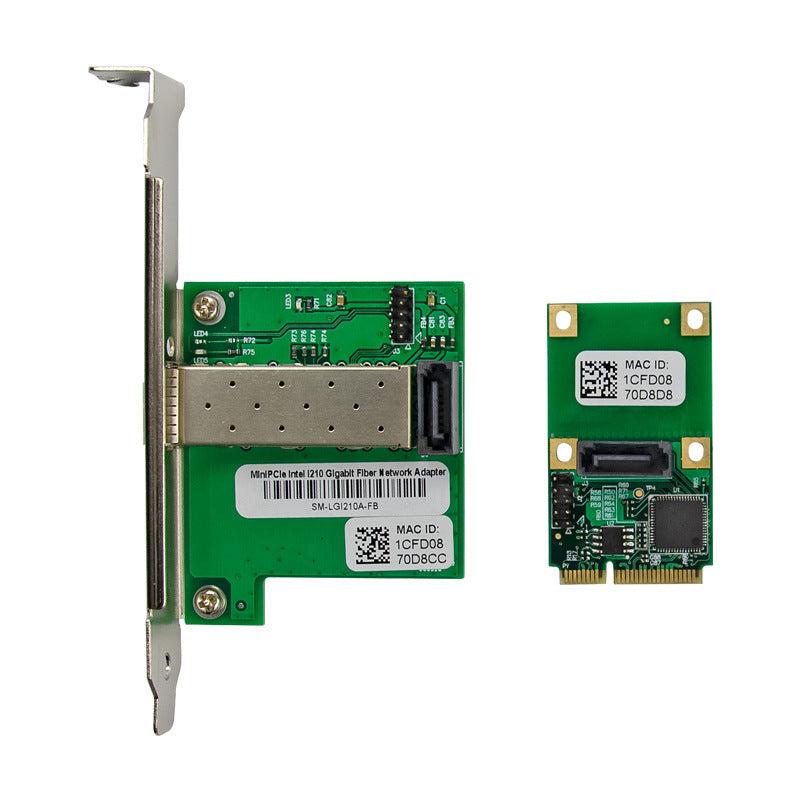

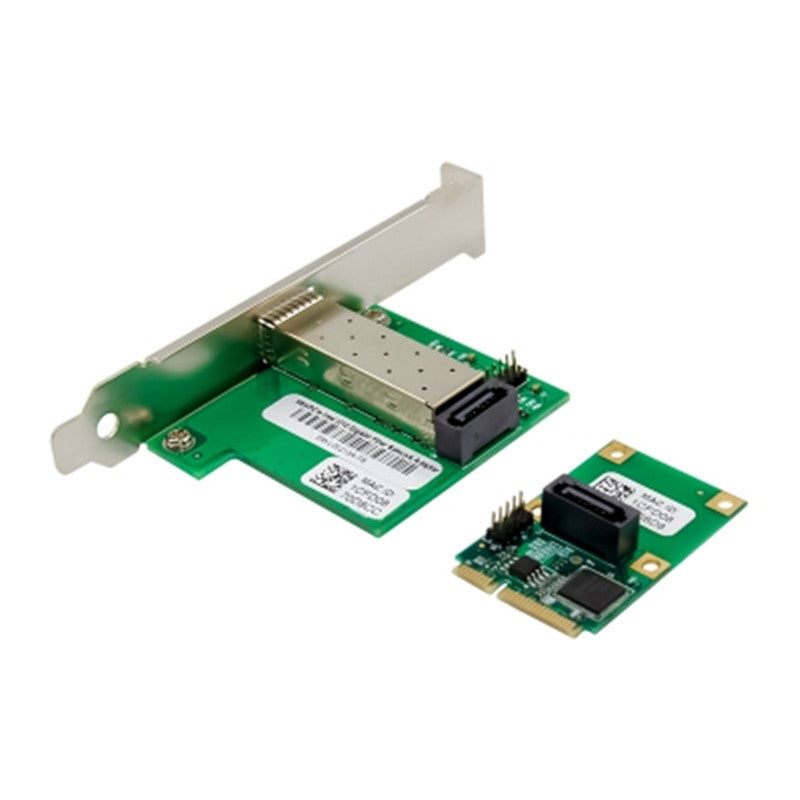

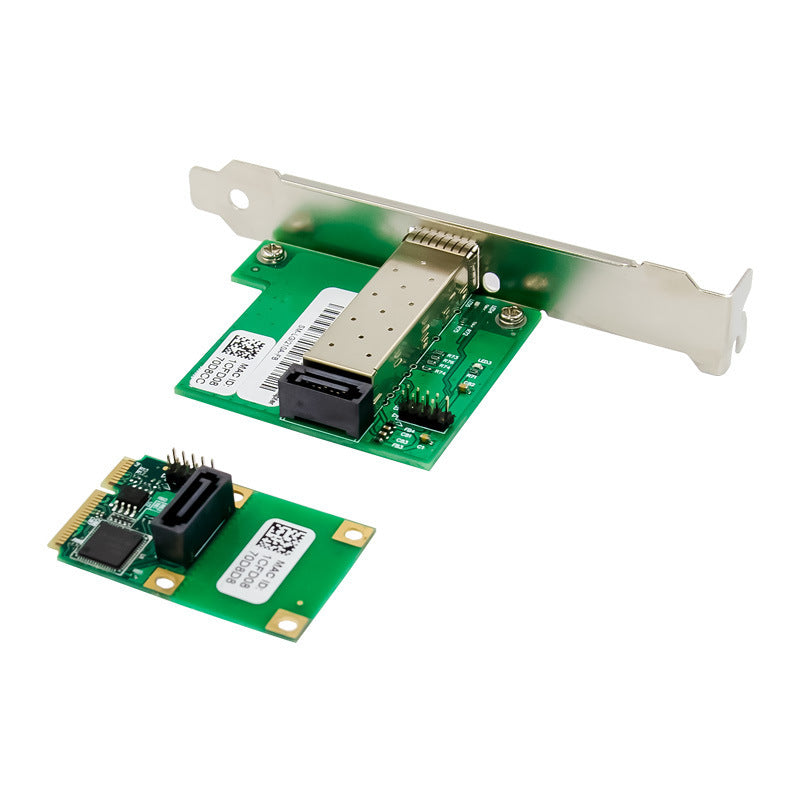

WGI210AS MiniPCIE I210 Gigabit Single-port SFP Server Controller Network Card Adapter

• Mini PCIE Gigabit fiber server network card is a self-developed one based on the Intel I210AS chipset network solution
• Mini PCIE single optical port SFP fiber Ethernet network adapter
• Support 1000M link rate automatically adapts to the existing Ethernet network
• SM-LGI210A-FB adopts miniPCIE slot design, which is widely used in industrial computer, embedded computer, single board computer, digital multimedia, etc.
• Network equipment, to solve the problem of compact equipment space, can achieve Windows, for Linux and other system support
• Users can choose fiber optic modules according to the actual transmission distance requirements. The adapter card has high performance, high stability, and very good compatibility, compatible with all brands of computers and fiber optic switches
• Mini PCIE I210 Gigabit Ethernet adapter can be widely used in: Industrial computers, embedded computers, single-board computers, digital multimedia and other network equipment
• SFP slot, supports the following transceivers: Mini GBiC
• 1000SX multi-mode, 1000LX single-mode, 1000BX single-mode WDM
• Chipset: Intel I210AS
• Layer 2 functions: IEEE 802.3x flow control - IEEE 802.1q VLAN
• Support Receive Side Scaling (RSS)
• Support IPv4, IPv6 protocols
• Supports 9K jumbo frames
• Support checksum offload

Specification:

• Network Type: 1000Base-SX/1000Base-LX, AOC
• Main Controller: Intel I210AS
• Bus card slot: mini PCIe
• Transmission medium: 1 x SFP fiber interface
• Transfer rate: 1000Mbps
• Network topology:
• IEEE802.3z 1000BASE-X Gigabit Ethernet
• IEEE 802.3x Full Duplex and flow control
• IEEE 802.3ad Link aggregation for parallel links
• IEEE 802.1Q VLAN, IEEE 1588
• IEEE 802.3az - Energy Efficient Ethernet (EEE)
• Features: Support PXE, DPDK, WOL, iSCSI, FCoE, Jumbo Frame, etc
• Working temperature: 0~55℃
• Storage temperature: -40~70℃
• System Requirements: Win 7/ Server 2012/ Server 2008/ Win 8/ Win 8.1/ Server 2016/ Win 10, FreeBSD, for Linux, VMWare ESXi

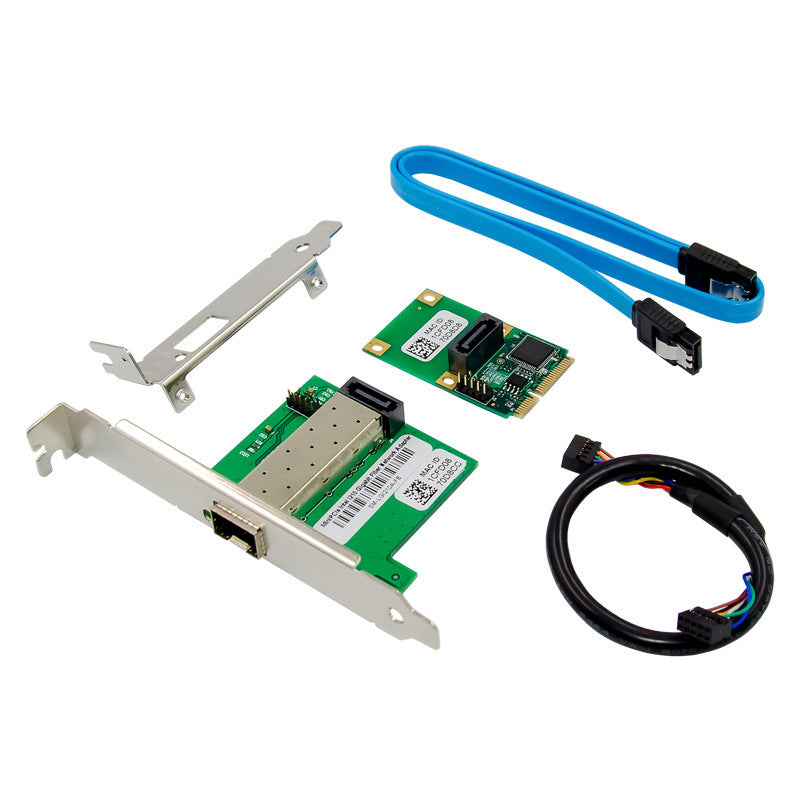

Package included:

• 1 x Network Card

• 1 x Gigabit SFP Optical Fiber Adapter

• 1 x Driver CD

• 1 x 10-pin Cable

• 1 x SATA Cable

• 1 x Bezel

• 1 x English User Manual
