SKU:C0011394A

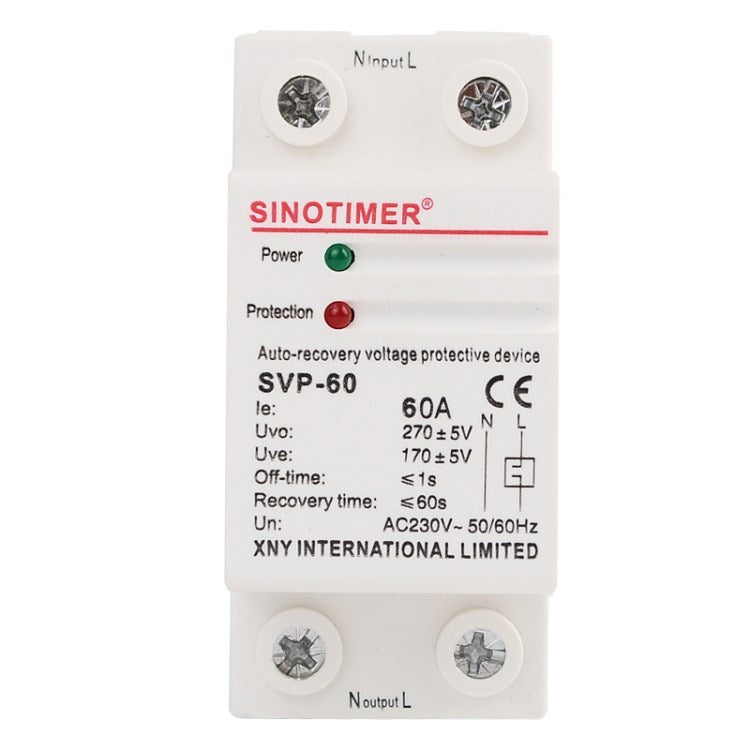

SINOTIMER Voltage Protection Relay 230V AC Automatic Reconnect Overvoltage Undervoltage Protector Voltage Monitoring Relay

Rs. 675.00

Save Rs. -675.00 Sold out

Tax included.

Product Attribiutes(40A) 40A 60A

Product variants

Quantity

The automatic recovery overvoltage and undervoltage protection device conform to the modular design standard
High-quality electronic components with reliable performance
When the power condition is unstable, the protection function is automatically activated
If the voltage is too high, it will automatically cut off
When the power returns to normal, it will re-power within 1 minute
Green light - normal power supply. Red light - overvoltage or undervoltage

Specifications:

AC voltage: 230V±10%, frequency 50Hz/60Hz
Max current: 40A or 60A
Max load power: 8.8KVA
Overvoltage action cut-off value: >270VAC±5V
Normal voltage value: 175-270VAC
Cut-off value for undervoltage: <170VAC±5V
Overvoltage and undervoltage cut-off: <1s
Delay after power failure: <60s
Self-consumption: <2W
Motor life: = 100000 times
Size: 35*70*77mm
Mounting type: 35mm Din Rail

Note:

When connecting for the first time, wait 1 minute. The product can only work after the red light goes out.

Package included:

1 x Voltage Monitoring Relay

The automatic recovery overvoltage and undervoltage protection device conform to the modular design standard
High-quality electronic components with reliable performance
When the power condition is unstable, the protection function is automatically activated
If the voltage is too high, it will automatically cut off
When the power returns to normal, it will re-power within 1 minute
Green light - normal power supply. Red light - overvoltage or undervoltage

Specifications:

AC voltage: 230V±10%, frequency 50Hz/60Hz
Max current: 40A or 60A
Max load power: 8.8KVA
Overvoltage action cut-off value: >270VAC±5V
Normal voltage value: 175-270VAC
Cut-off value for undervoltage: <170VAC±5V
Overvoltage and undervoltage cut-off: <1s
Delay after power failure: <60s
Self-consumption: <2W
Motor life: = 100000 times
Size: 35*70*77mm
Mounting type: 35mm Din Rail

Note:

When connecting for the first time, wait 1 minute. The product can only work after the red light goes out.

Package included:

1 x Voltage Monitoring Relay
