SKU:612500043A

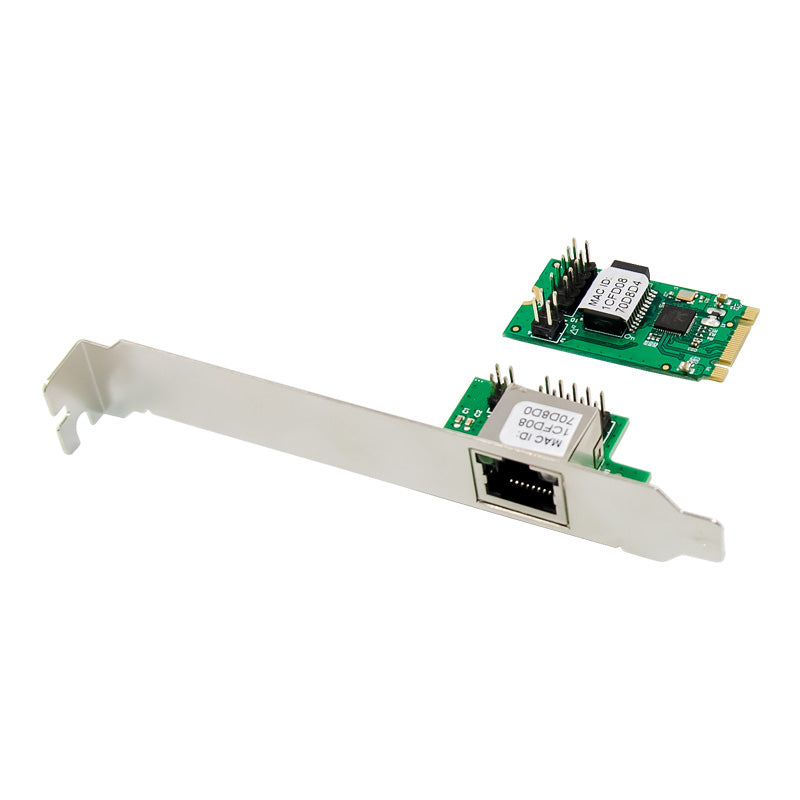

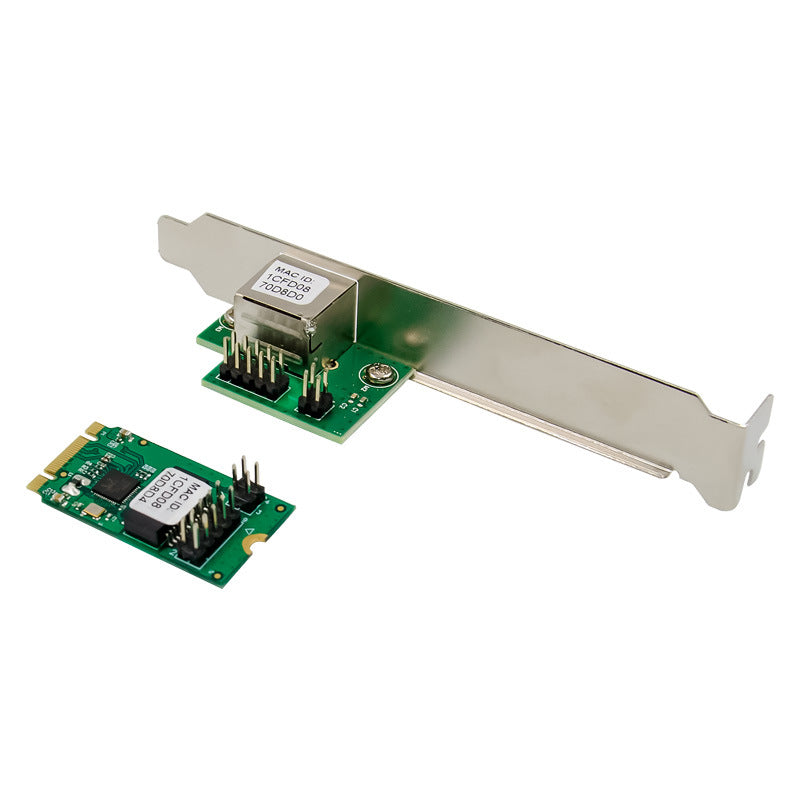

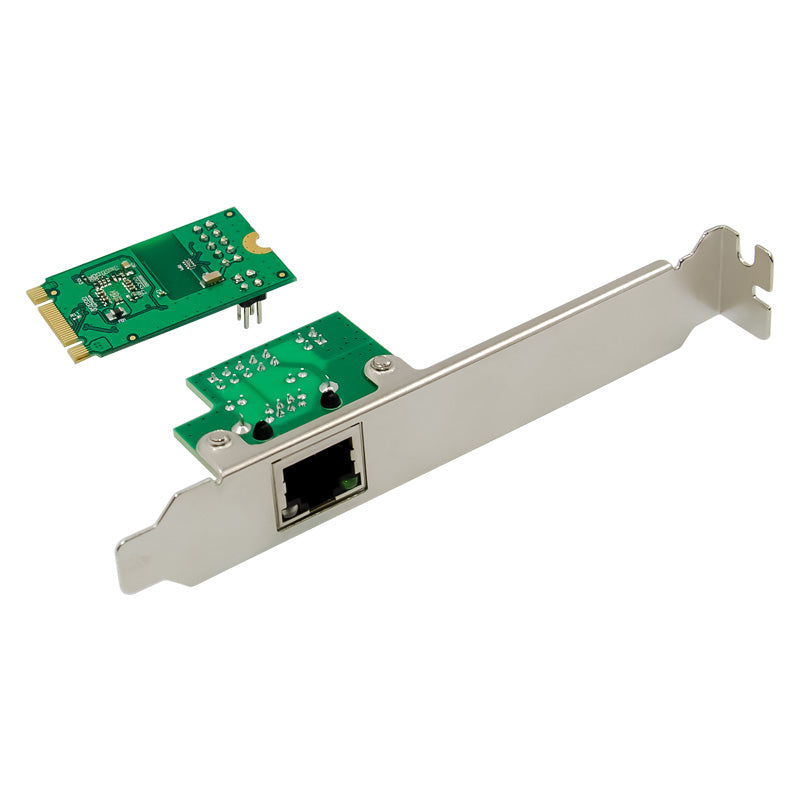

M.2 RTL8111F Adaptive Gigabit Single Port Ethernet Card GbE RJ45 Gigabit Industrial Network Card

Rs. 1,736.00

Save Rs. -1,736.00 Sold out

Tax included.

Product variants

Quantity

SM-LG8111A-BT is a cost-effective 10/100/1000M adaptive Gigabit Ethernet card. Fully comply with IEEE 802.3 10Base-T Ethernet standard, IEEE 802.3u 100MBase-TX Fast Ethernet standard and IEEE 802.3ab 1000MBase-T
Gigabit Ethernet standard, supports IEEE 802.3x full-duplex flow control

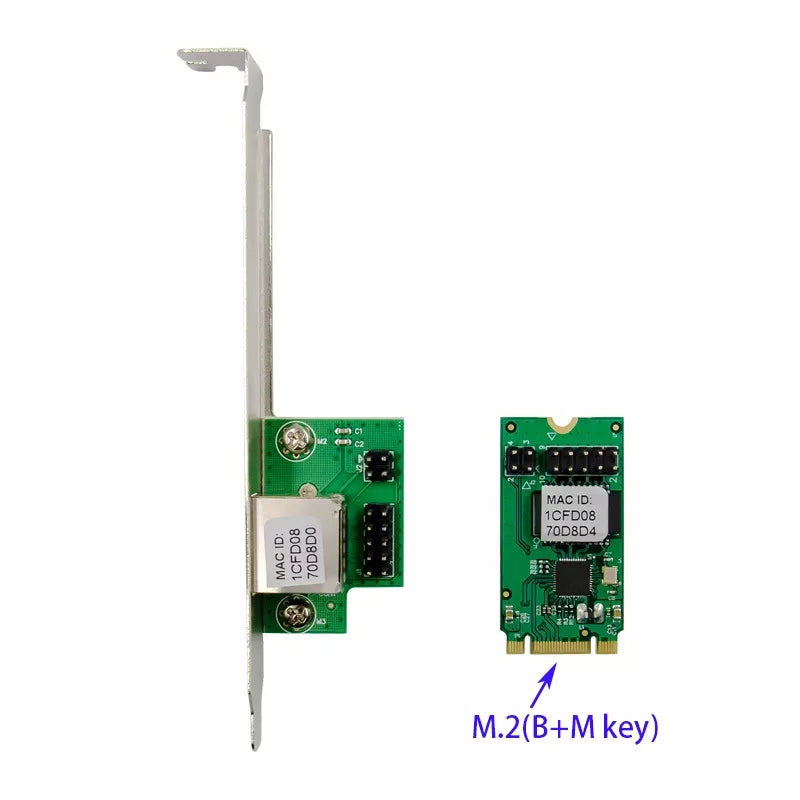

SM-LG8111A-BT adopts M.2 2260 standard interface (22x60x6.1mm) to ensure sufficient bandwidth. The transmission rate of the M.2 B+M Key interface is 2.5Gb/s, and the user can provide an RJ-45 network interface for the system through an adapter cable, front or rear daughter card
It has a network speed of 1000Mbps in full duplex, supports crossover detection and automatic correction, and is backward compatible with 10/100BASE-T
Network 10/100/1000MbPS data rate auto-negotiation operation, compatible with existing CAT-5UTP cables, users can achieve convenient, fast, simple and reliable connection
Compliant with M.2 B+M KEY NVMe bus interface specification
High Performance 1000BASE-T Ethernet Controller Card
Backward compatible with 10/100BASE-T networks
Supports jumbo frames up to 9K bytes
10/100/1000Mbps data rate auto-negotiation operation
Compatible with existing CAT-5 UTP cables
Fully compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab
Supports half/full duplex mode and 802.3x flow control
Support IEEE802.1P Layer2 priority encoding
Supports IEEE 802.1Q VLAN tagging
Transmit/Receive on-chip buffer support
Cross detection and automatic correction operations
Support power down / link power saving
Wake-on-LAN and Remote Wake-up support

Specification:

MiniPCI-E main card: 30*51mm
MiniPCI-E daughter card: 25*38mm
4-pin cable: 26.5cm
10-pin cable: 27cm
Network Type: M.2 to Gigabit Ethernet
Bus type: M.2 2242 standard interface, 2.5Gb/s
Main Chipset: Realtek RTL8111F
Transmission medium: 1 x RJ45 port
Transmission rate: 10/100/1000Mbps

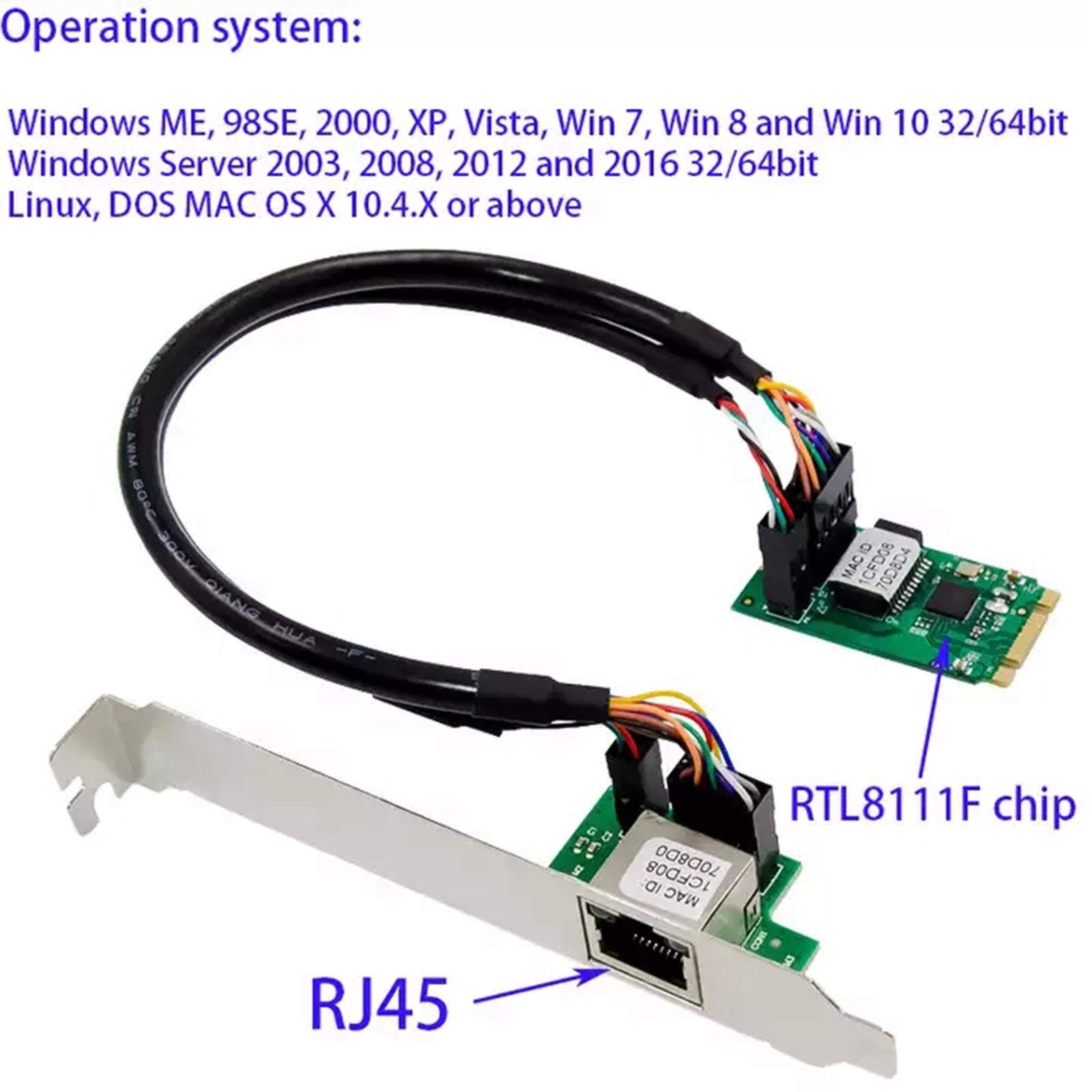

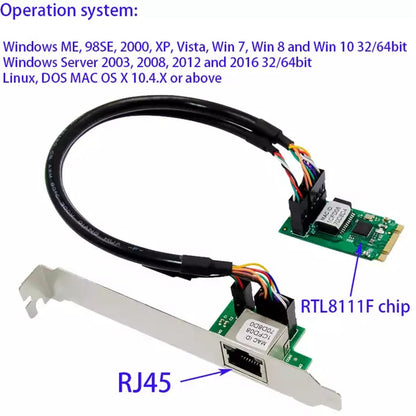

Operating system:

For Windows ME, 98SE, 2000, XP, Vista, Win 7, Win 8 and Win 10 32/64bit
For Windows Server 2003, 2008, 2012 and 2016 32/64bit
For Linux, for DOS MAC OS X 10.4.X or above

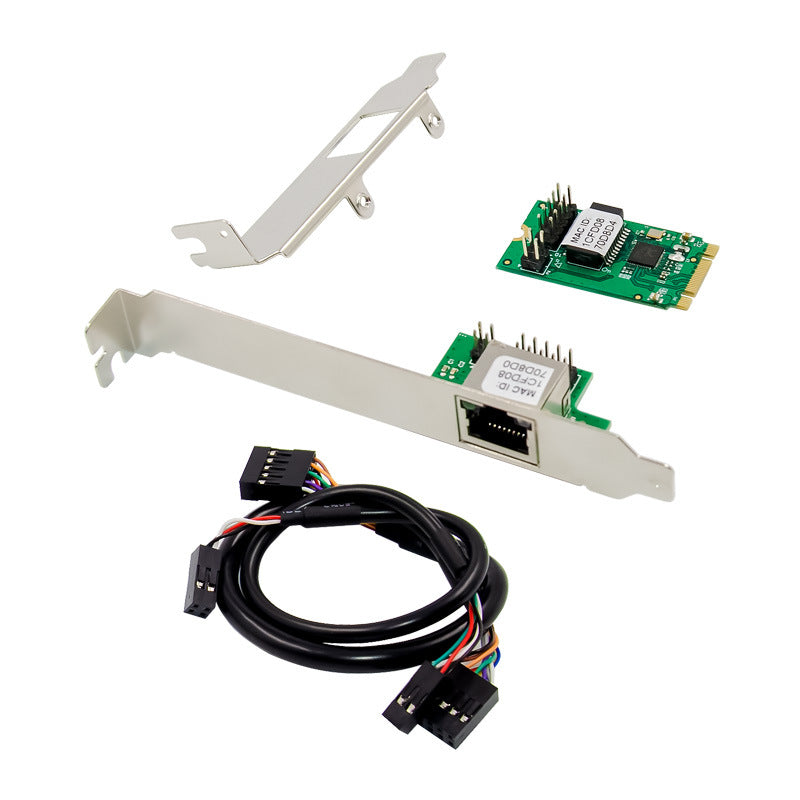

Package included:

1 x M.2 Gigabit Ethernet Card (Master Card)
1 x Gigabit RJ45 Port Daughter Card
1 x English User Manual
1 x CD Driver
1 x 10-pin Network Cable
1 x 4-pin LED Cable
