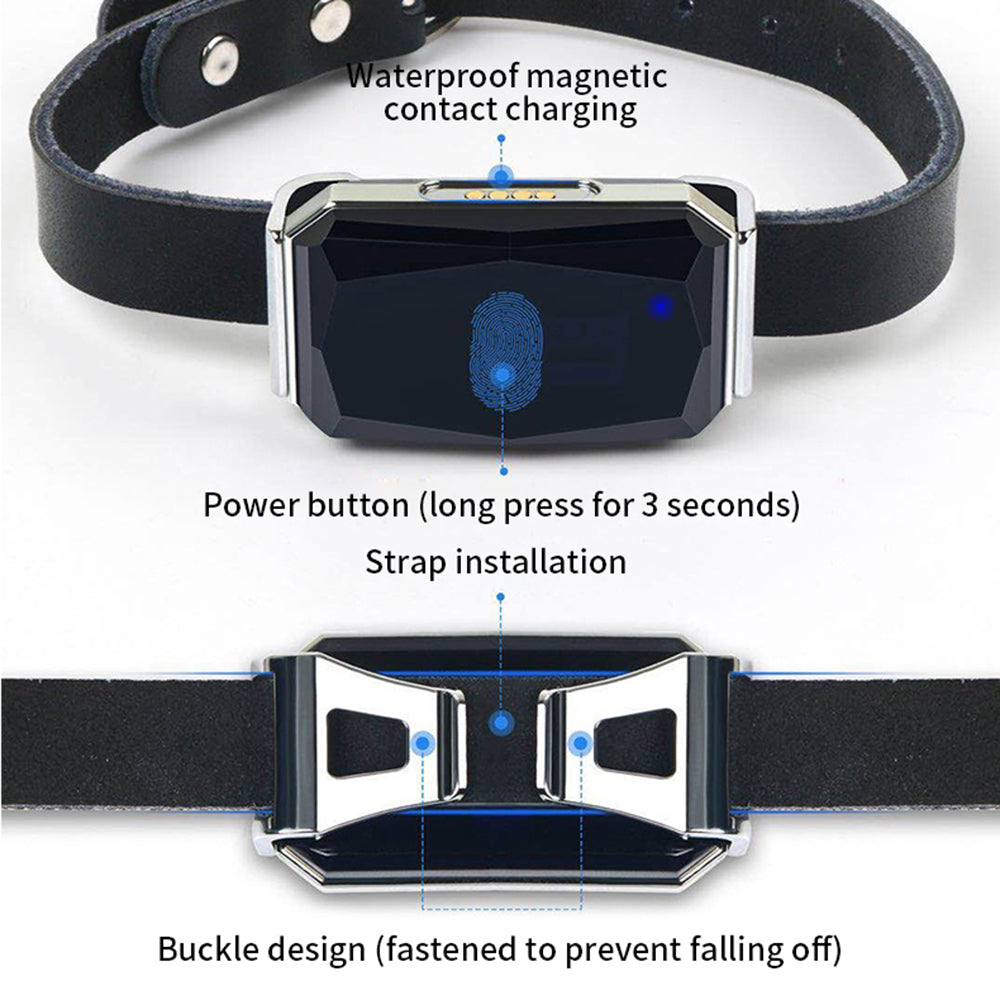

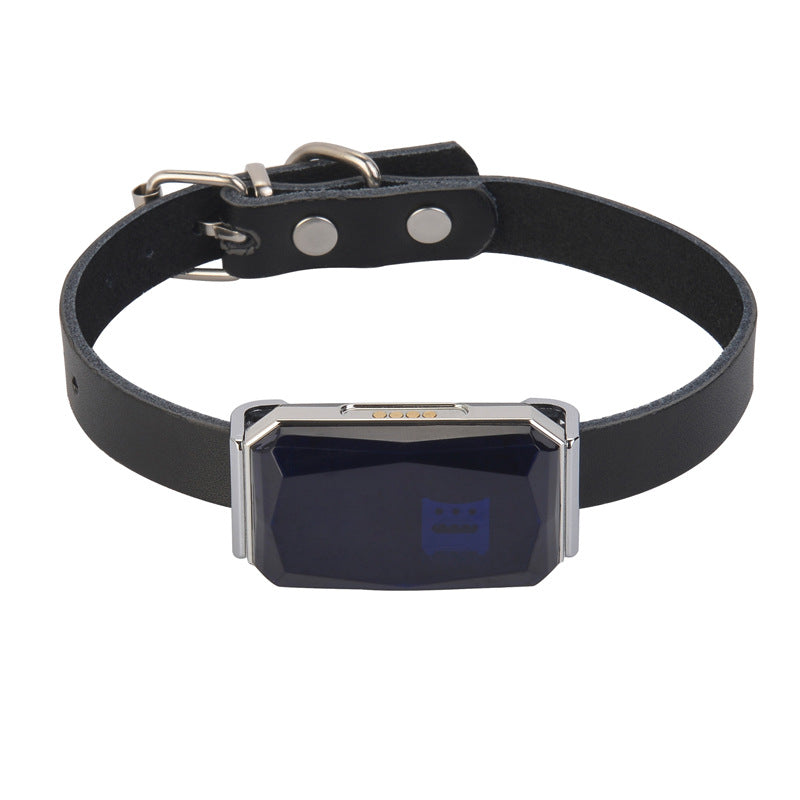

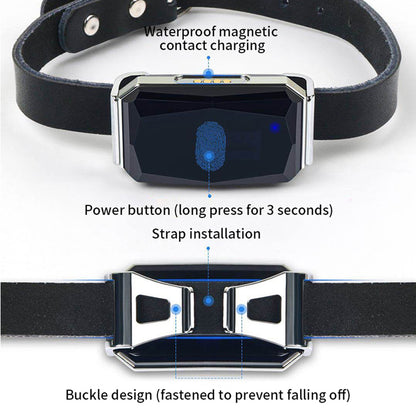

G12 Gem Design Pets Collar GPS Tracker IP67 Waterproof Rechargeable Dog Cat Tracking Device Locator

• One key to know the location of the pet, easy to use

• IP67 waterproof, a small amount of rain and other weather will not have any effect on the device

• Not afraid of the pet getting lost, accurate real-time positioning

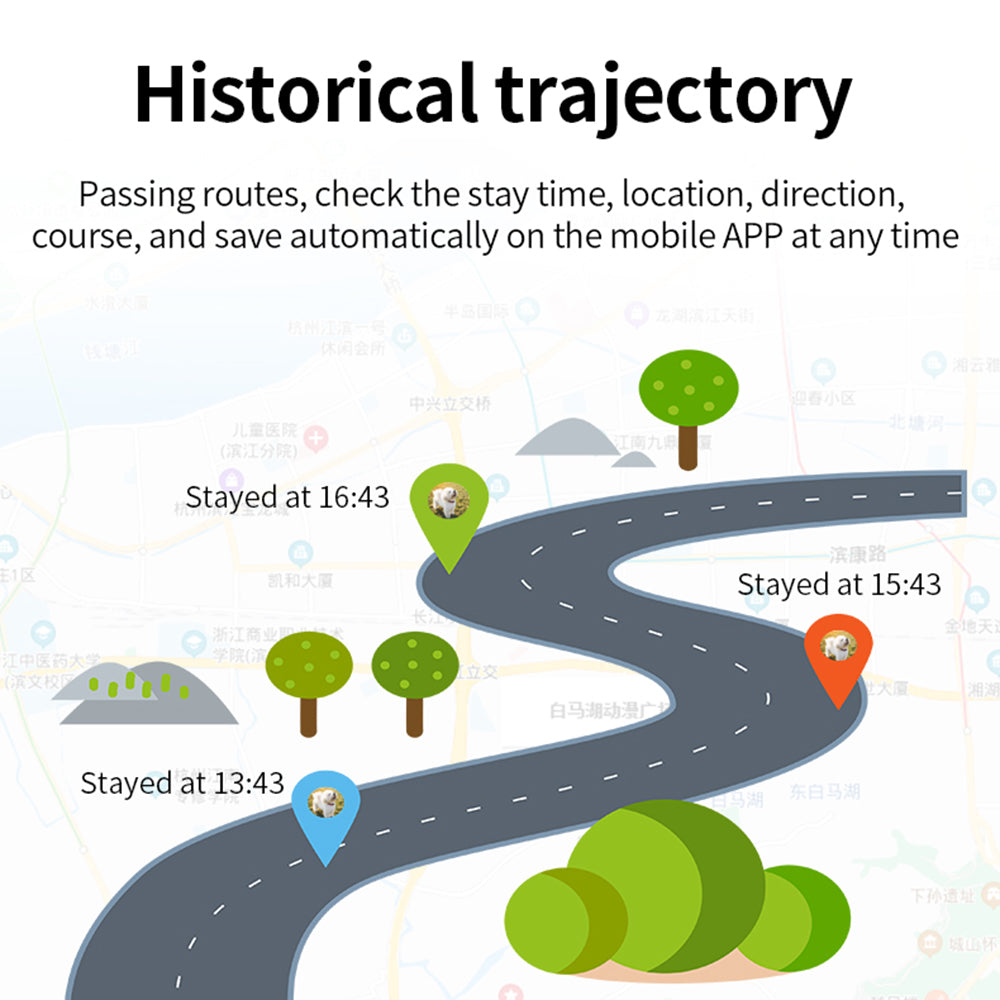

• Historical trajectory, recording passing routes, check the stay time, location, direction, course, and save automatically on the mobile APP at any time

• Electronic fence exceeding alarm, when pets leave the set safe activity area(100m-5000m), the locator will send an alarm message to APP, effectively preventing pets from getting lost

• Main functions: Real-time GPS/AGPS/WIFI/LBS positioning, SOS help, remote monitoring, dialing family numbers, pedometer, electronic fence warning reminder, historical track query, alarm clock function, class mode, power-saving mode

Specification:

• Chip: MT2503D/MTK3333/MTK5931

• Memory: 32M Flash Memory

• RF power amplifier: RDA6625E

• Motherboard stack size: 20*35*4.5mm (thickness is the total thickness of PCBA+GPS antenna)

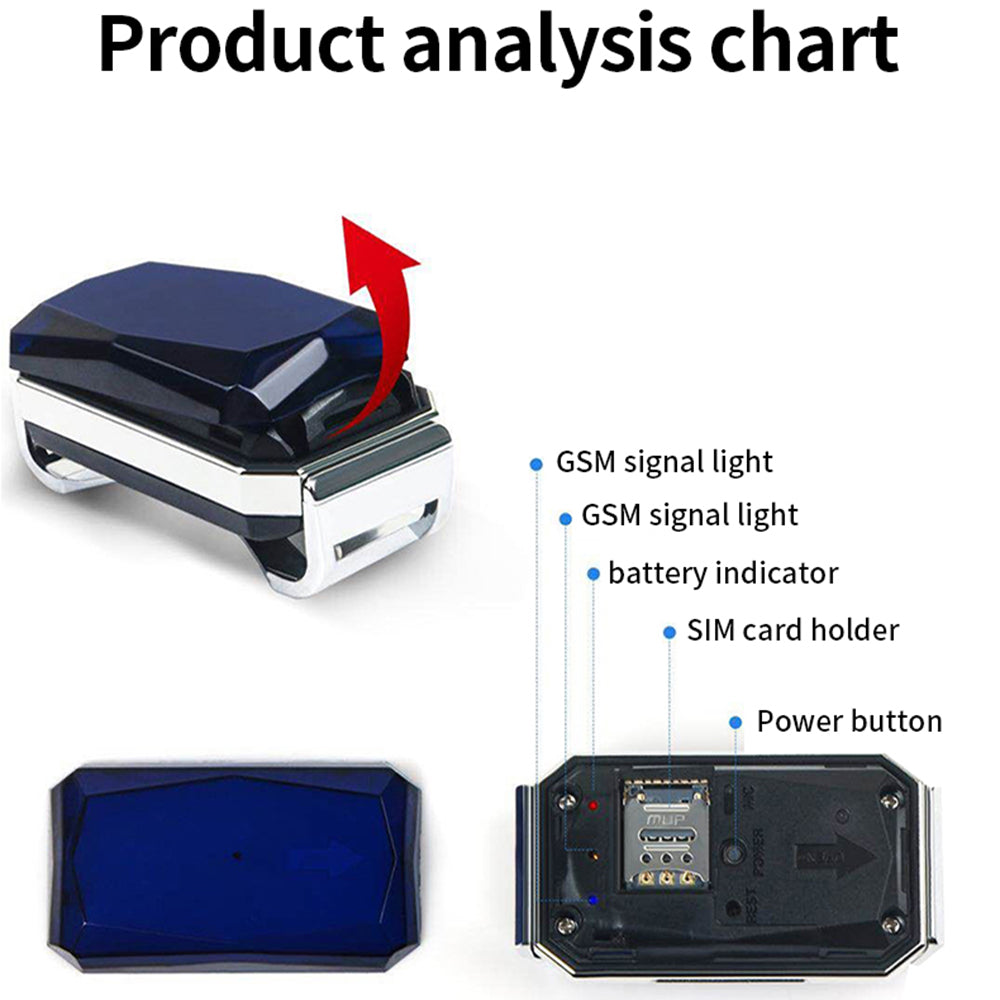

• SIM card: Nano SIM card holder

• Working environment temperature: -20to +70℃

• Working environment humidity: 20%-80%RH

• GSM frequency band: 850MHz/900MHz/1800 MHz/1900MHz

• GPRS: Class 12

• Battery: 3.7V 400mAh

• Standby average current: less than 2mA (specifically determined by the connection method)

• I/O interface: Built-in Micro 5pin

• Speaker: 0916 specification AAC

• MIC: High-definition silicon microphone (sound can be heard within 10 meters)

• Sensor: 3D G-Sensor

• TF: Maximum support 32G TF card (not included)

• GPS positioning accuracy: within 10 meters

• WIFI positioning accuracy: within 50 meters

• GSM positioning accuracy: 50-200 meters (depending on network conditions)

• Speed accuracy: 0.1 m/s

• GPS positioning time: cold start-38s, Hot start -2s (the specific time will vary depending on the environment)

• Shell material: PC

• GSM antenna: PIFA antenna

• Working voltage: 3.5-4.2V (3.4V low power automatic shutdown)

• Charging voltage/current: 5V/800mA

• GPS antenna: High-performance 15X15 ceramic antenna

Package included:

• 1 x GPS Tracker

• 1 x Charging Cable

• 1 x Leather Collar

• 1 x English and Chinese Use Manual
