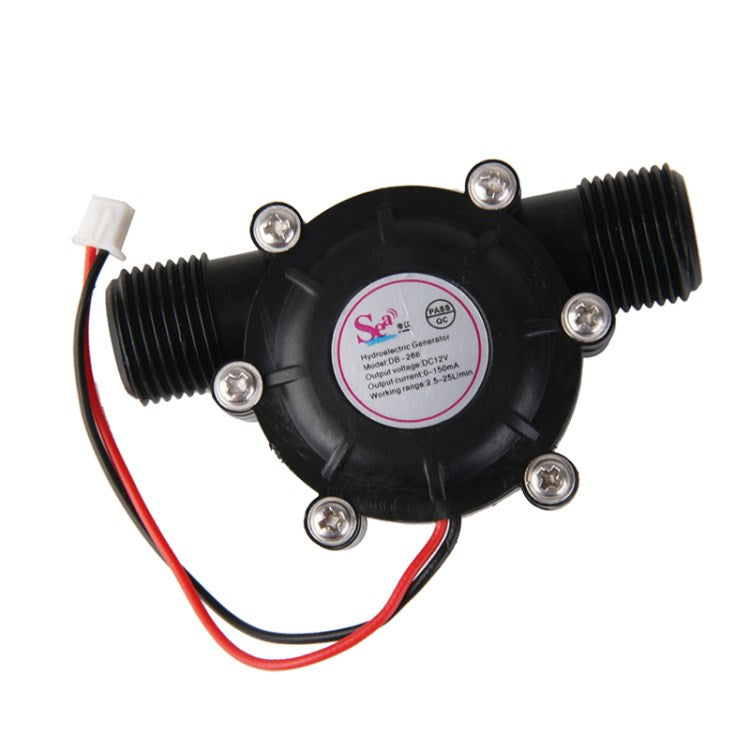

DC 12V Water Turbine Generator Hydraulic Water Flow Pump Turbine Generator

• A micro hydroelectric generator, a mechanical device that converts the potential energy of water into electrical energy

• It can directly charge small batteries, mobile phones, 12V radio power supply, LED lights, etc.

• The generator surface is corrosion-resistant and sturdy

Specifications:

• Axial clearance: 0.2 - 1.0mm

• Mechanical noise: ≤55dB

• Generator single volume: 90g

• Generator life: ≥3000h

• Output high voltage: 12V (1.2Mpa)

• Output current: 0-150mA

• Line resistance: 10.5+0.5&

• Insulation resistance: 10M&; (DC100)

• The maximum voltage when the socket is closed: 0.6Mpa

• The maximum voltage of the water outlet opening: ≥1.2Mpa

• Start water pressure: 0.05Mpa

• Flow range: 2.5-25L/min

• Size: 84*49*30mm / 3.3*1.93*1.26inch

Note:

• There are two kinds of lithium batteries on the market, with and without charge control chip. Lithium battery charging requires a charging control chip, otherwise it is easy to burst.
