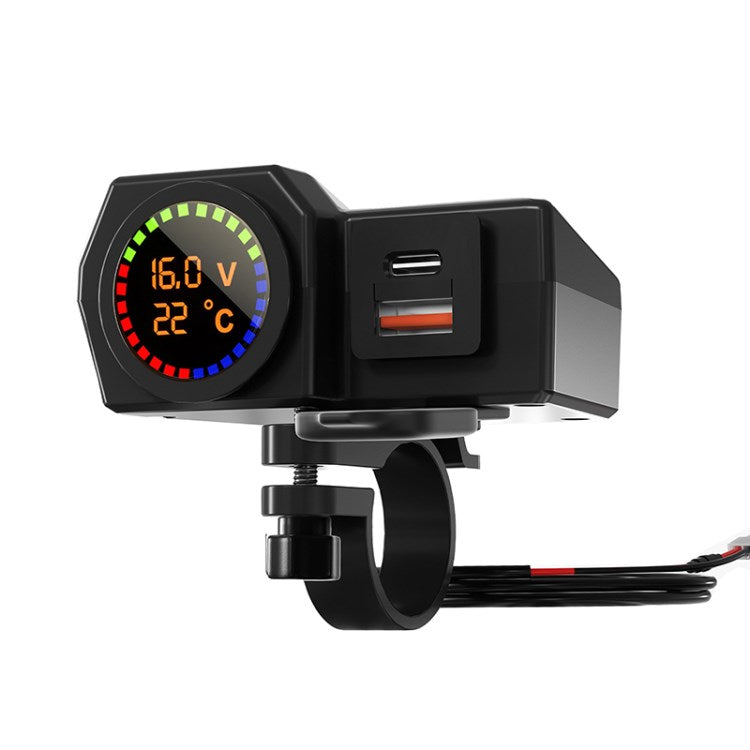

CS-1747A2 PD+USB Charging Motorcycle Phone Charger Voltage Meter Bike Phone Adapter

• Color screen voltmeter, can detect the car battery at any time

• 70cm power cord, fully meet the installation needs

• With white connector, plug and unplug at will, easy to power off

• Multiple charging protection, easy to use

• USB port: DCP, FCP, AFC, QC2.0, QC3.0 fast charging; Type-C PD port: support BC1.2, QC2.0 and QC3.0

Specifications:

• Product: Motorcycle Phone Charger

• Model: CS-1747A2

• Material: flame retardant ABS

• Cable length: 70cm

• Input voltage: DC 12V-24V

• Charging port: USB port + Type-C port

• Voltmeter: 6-30V

• Installation method: handlebar, rearview installation

• Wiring method: red - positive, black - negative

• Voltmeter light: orange+red-green-blue

• Uses: battery voltmeter, USB charger

• Color screen: 10V-12.7V: red; 12.8V-14.5V: green, 14.6V-16V: blue

• Output voltage: USB: 5V/3.4A, 9V/2A, 12V/1.5A; Type-C: 5V/3A, 9V/2A, 12V/1.5A

• Protection function: input overvoltage, undervoltage protection; overcurrent, overvoltage, undervoltage, short circuit protection; reverse connection protection; high temperature protection

Package included:

• 1 x Adapter

• 1 x Bracket

• 1 x Rearview Bracket

• 1 x Anti-skid Gasket

• 1 x Long Screw

• 2 x Small Screws

• 1 x Nut

• 1 x Gasket
