Description
-
Multi-functional Multimeter: It can measure AC/DC current, AC/DC voltage, resistance, capacitance, temperature, frequency, continuity, and diode test, firewire detection
-
Flashlight Function: It can auxiliary lighting up the working area in low light or dark environment, and it will automatically turn off after about 1 minute
-
NCV Non-contact Voltage Detection: Place the NCV sensor closer to the measured cable, and the multimeter can detect whether the voltage is greater than 90ACV
-
Safety Operation: Built-in overload protection fuse, smart anti-burn. Meet the DC/AC 600V CAT III overvoltage standard, and double insulation protection
-
Touch Screen Control: Easy to operate, with a large VA color reverse LCD display screen, convenient to check the measured data at a glance
Specifications:
-
Material: ABS
-
Size: 133 x 66.5 x 22.5mm / 5.24 x 2.62 x 0.89 in
-
Working Altitude: Maximum 2000m
-
Display: LCD
-
Maximum Display Value: 9999 digits
-
Polarity Indication: Automatic indication, "-" indicates negative
-
Overrange Display: "OL" or "-OL"
-
Sampling Time: About 3 times/second
-
Automatic Shutdown Time: 15 minutes
-
Battery Undervoltage Indicator: Yes
-
Temperature Coefficient: <0.1X accuracy/℃
-
Operating Temperature: 0~40°C
-
Storage Temperature: -10~50℃
-
Power Supply: Built-in 3.7V 600mAh polymer lithium battery
-
AC Current: 999.9mA/10A
-
DC Current: 999.9mA/10A
-
AC Voltage: 999.9mV/9.999V/99.99V/999.9V
-
DC Voltage: 999.9mV/9.999V/99.99V/999.9V
-
Resistance: 999.9Ω/9.999KΩ/99.99KΩ/999.9KΩ/9.999MΩ/99.99MΩ
-
Capacitance: 9.999nF/999.9nF/9.999uF/99.99uF/999.9uF/9.999mF/99.99mF
-
Temperature: -40~1000℃ (-40~1832℉)
-
Frequency: 100Hz/1000Hz
Package included:

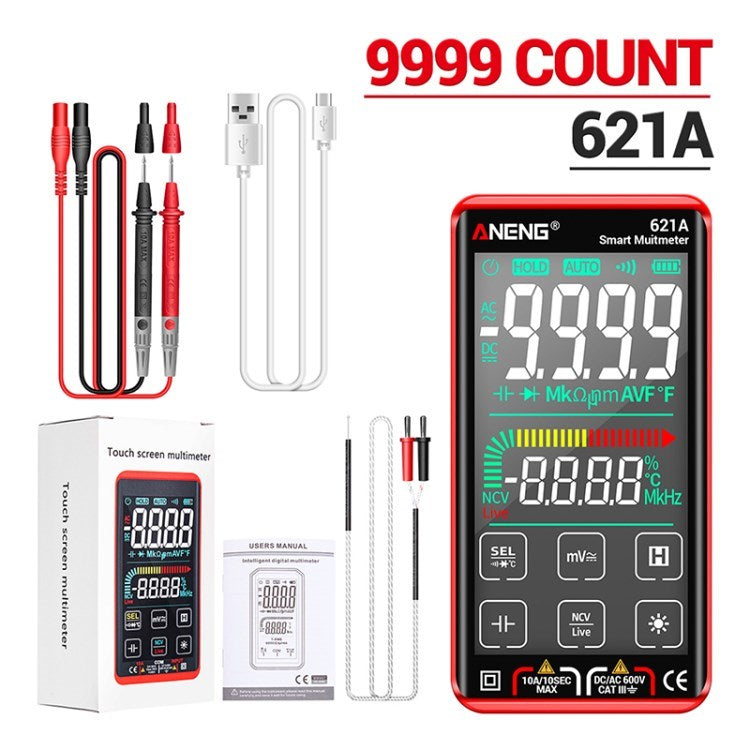

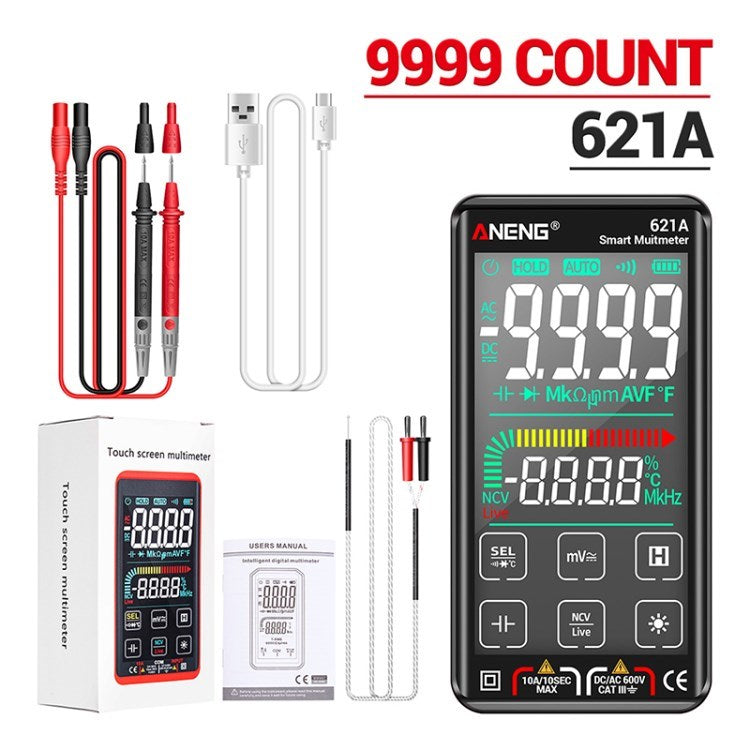

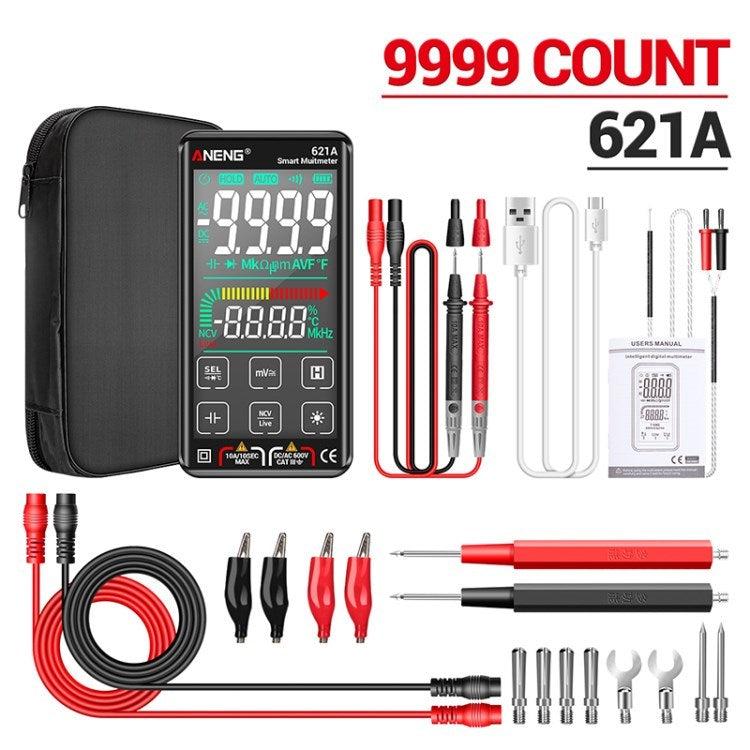

1 x Set of Multimeter
